INTEGRATED POWER MODULE (IPM)

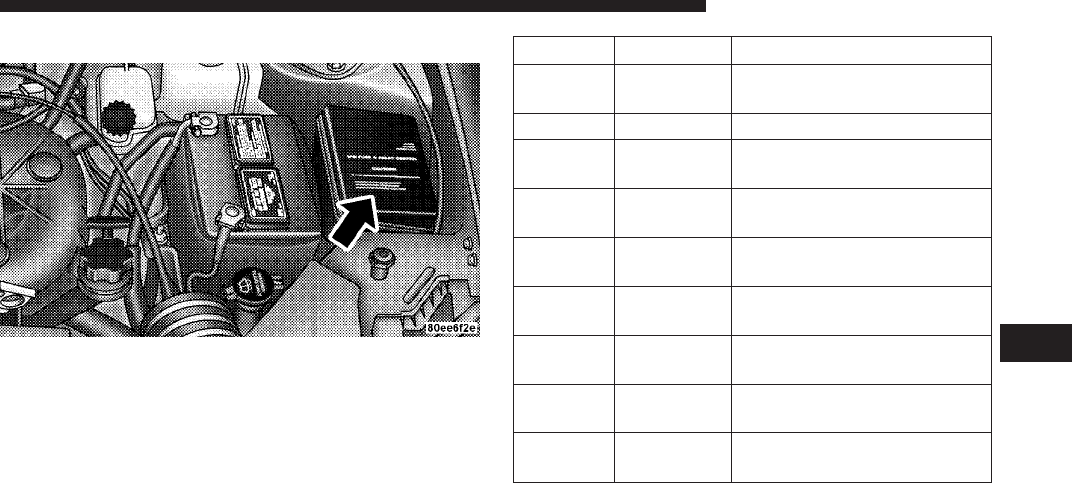

An Integrated Power Module is located in the engine
compartment near the battery. This center contains maxi
fuses, mini fuses and relays. A label that identifies each
component is printed on the inside of the cover.
Cavity Maxi Fuse Description
1 40 Amp
Green
Anti-Lock Brake System
(ABS) Pump
2 Spare
3 30 Amp
Pink
Ignition Off Draw (IOD)
4 40 Amp
Green
Body Control Module
(BCM) Feed 1
5 40 Amp
Green
Electronic Back Light (EBL)
6 30 Amp
Pink
Front Wipers
7 40 Amp
Green
Starter
8 40 Amp
Green
Power Seat C/B
9 40 Amp
Green
Power Sunroof
Integrated Power Module (IPM)
