41

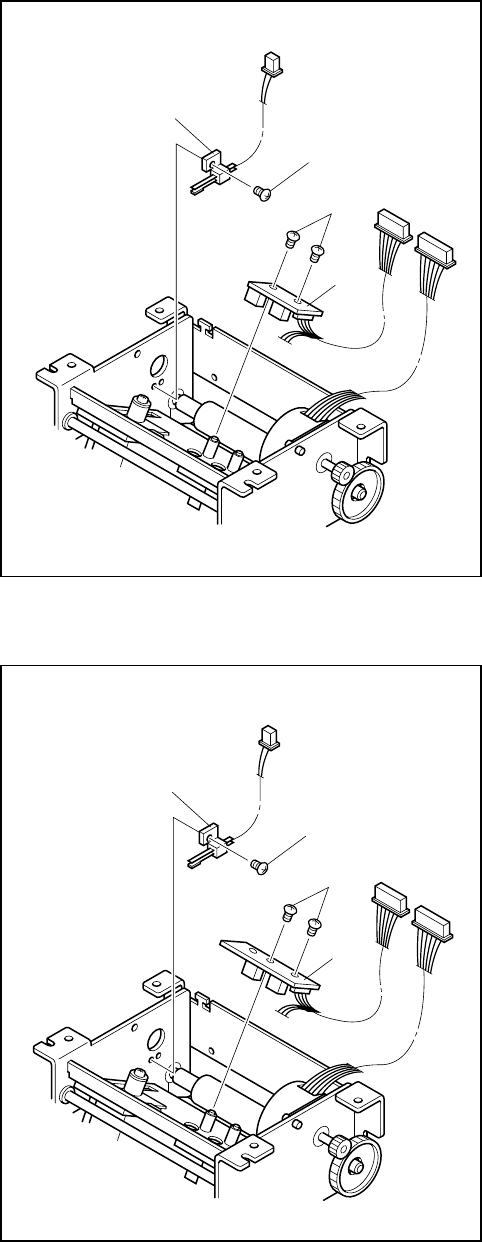

7. Sensor Unit
Old Type
(1) Remove:
Printer mechanism (See 3. above.)
Two wire band screws holding the lead wire [1].
Screws 2 pcs. [1]
Transmit sensor [2]
Screw 1 pc. [3]
Head-up sensor [4]
Note: There are two types of transmit sensors.
One is for the old type and the other is for the new
type.
New Type
[
3
]
[
2
]
[
1
]
[
4
]
[
3
]
[
2
]
[
1
]
[
4
]
