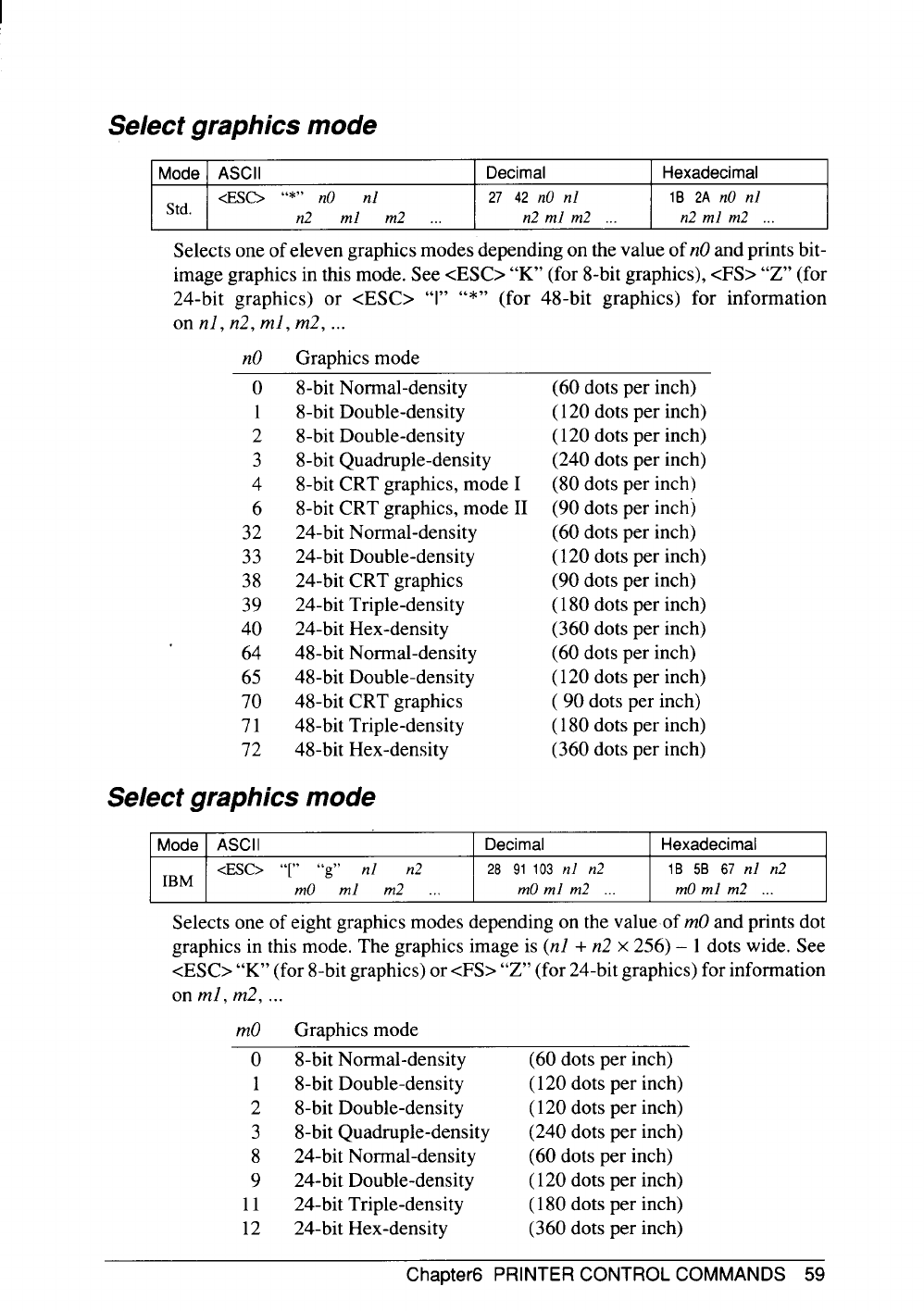

Select graphics mode
4Y3G “*” nO nl
Std.
27 42 nO nl
IB 2A nO nl
n2
ml m2
n2 ml m2
n2 ml m2
Selects one of eleven graphics modes depending on the value of nOand prints bit-
image graphics in this mode. See <ESC> “K” (for 8-bit graphics), <FS> “Z” (for
24-bit graphics) or <ESC> “l” “*”
(for 48-bit graphics) for information
on
nl, n2, ml, m2, ...
nO
Graphics mode
o
1
2
3
4
6
32
33
38
39
40
64
65
70
71
72
8-bit Normal-density
8-bit Double-density
8-bit Double-density
8-bit Quadruple-density
8-bit CRT graphics, mode I
8-bit CRT graphics, mode II
24-bit Normal-density
24-bit Double-density
24-bit CRT graphics
24-bit Triple-density
24-bit Hex-density
48-bit Normal-density
48-bit Double-density
48-bit CRT graphics
48-bit Triple-density
48-bit Hex-density
Select graphics mode
(60 dots per inch)
(120 dots per inch)
(120 dots per inch)
(240 dots per inch)
(80 dots per inch)
(90 dots per inch)
(60 dots per inch)
(120 dots per inch)
(90 dots per inch)
(180 dots per inch)
(360 dots per inch)
(60 dots per inch)
(120 dots per inch)
(90 dots per inch)
(180 dots per inch)
(360 dots per inch)
43SC> “ “ “g” nl n2
IBM
[
28 91 103 nl n2
IB 5B 67 nl n2
mO ml m2
ml m2
Selects one of eight graphics modes depending on the value of mOand prints dot
graphics in this mode. The graphics image is
(nl +n2 x 256)– 1 dots wide. See
<ESC> “K” (for 8-bit graphics) or <FS> “Z” (for 24-bit graphics) for information
on
ml, m2, ...
mO
Graphics mode
o
1
2
3
8
9
11
12
8-bit Normal-density
8-bit Double-density
8-bit Double-density
8-bit Quadruple-density
24-bit Normal-density
24-bit Double-density
24-bit Triple-density
24-bit Hex-density
(60dots per inch)
(120 dots per inch)
(120 dots per inch)
(240 dots per inch)
(60 dots per inch)
(120 dots per inch)
(180 dots per inch)
(360 dots per inch)
Chapter6 PRINTER CONTROL COMMANDS 59
