3. Remove one screw (callout 3) and remove the left bracket. Remove one other screw (callout 4).
4
3

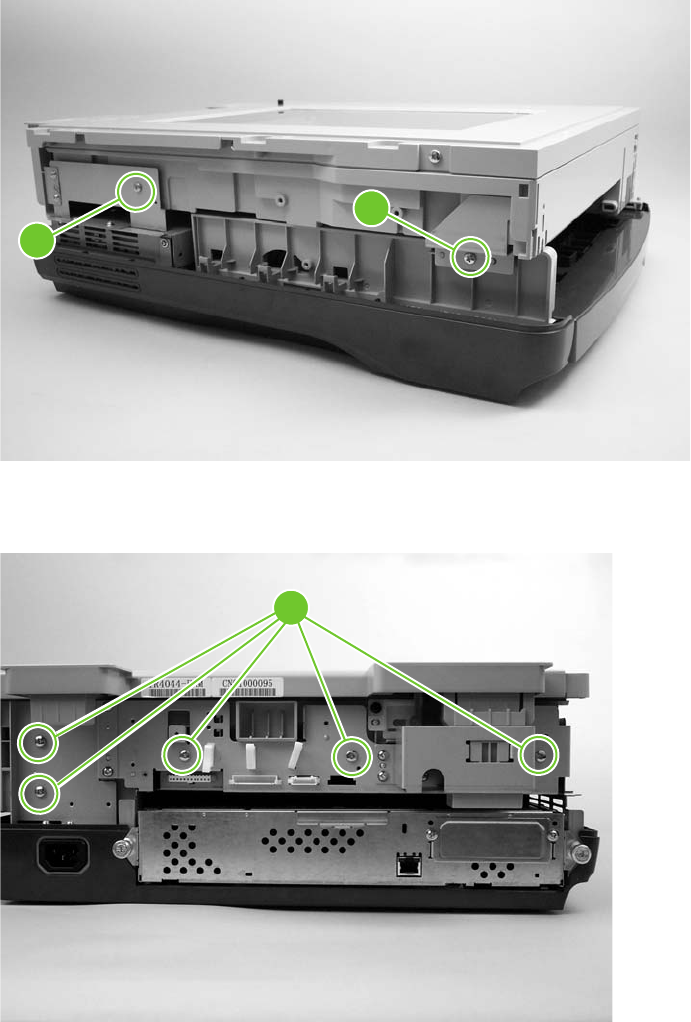

Figure 5-79 Removing the flatbed scanner assembly (2 of 4)
4. Remove five screws (callout 5).
5
Figure 5-80 Removing the flatbed scanner assembly (3 of 4)
ENWW Internal components 97
