AC Power Supply Removal
Removal/Replacement Procedures 7-29
AC Power Supply Removal
To remove the AC power supply:
1 Open the front, back, and top covers.
2 Duplex only: Remove the duplex tray.
3 Remove the upper and lower paper cassettes.
4 Remove the left side cover. (See page 7-8.)
5 Remove the paper feed drive cover (three screws).
6 Remove the power control board cover (one screw).
7 Disconnect CN4 and CN70.

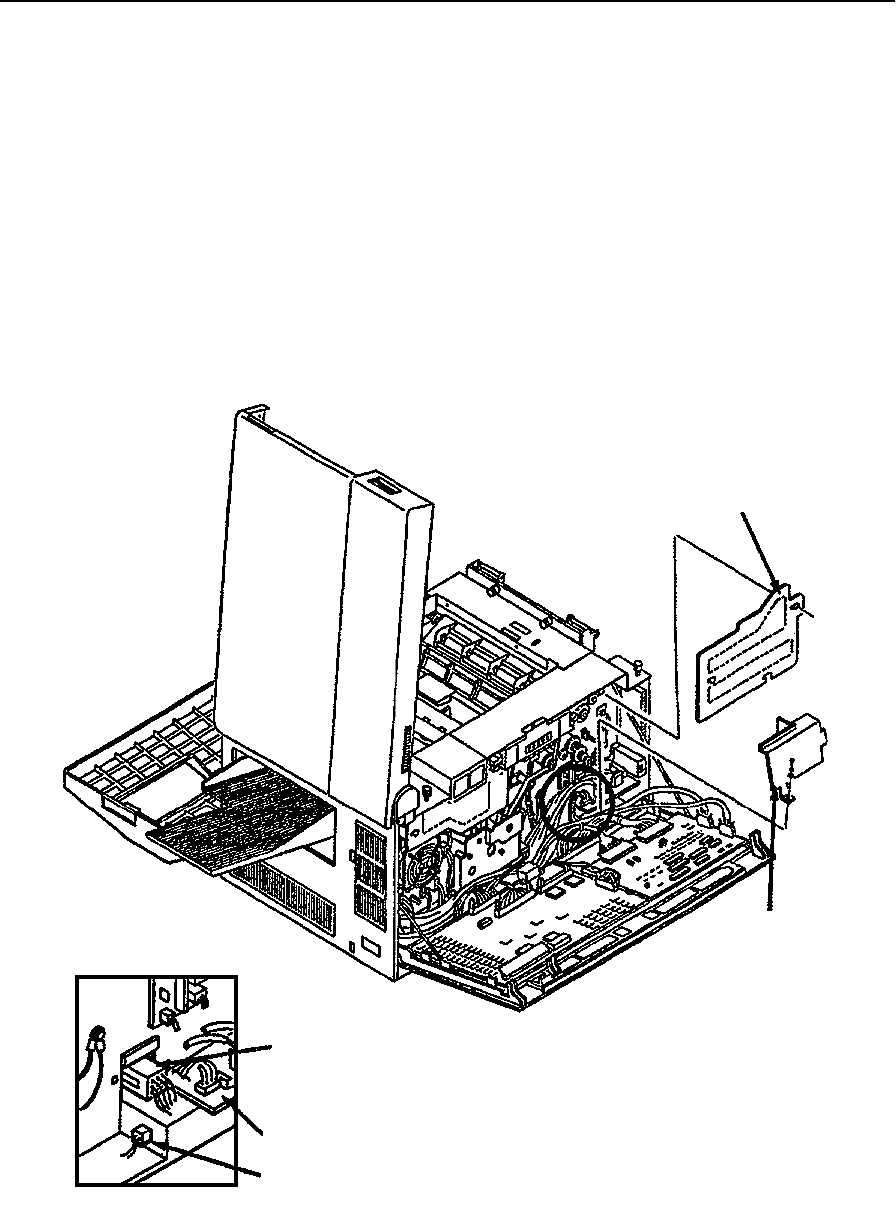

Paper Feed Drive Cover
Power Control
Board Cover
CN4
Power Control Board
CN70
Back Detail
