Installing Drives 7-13

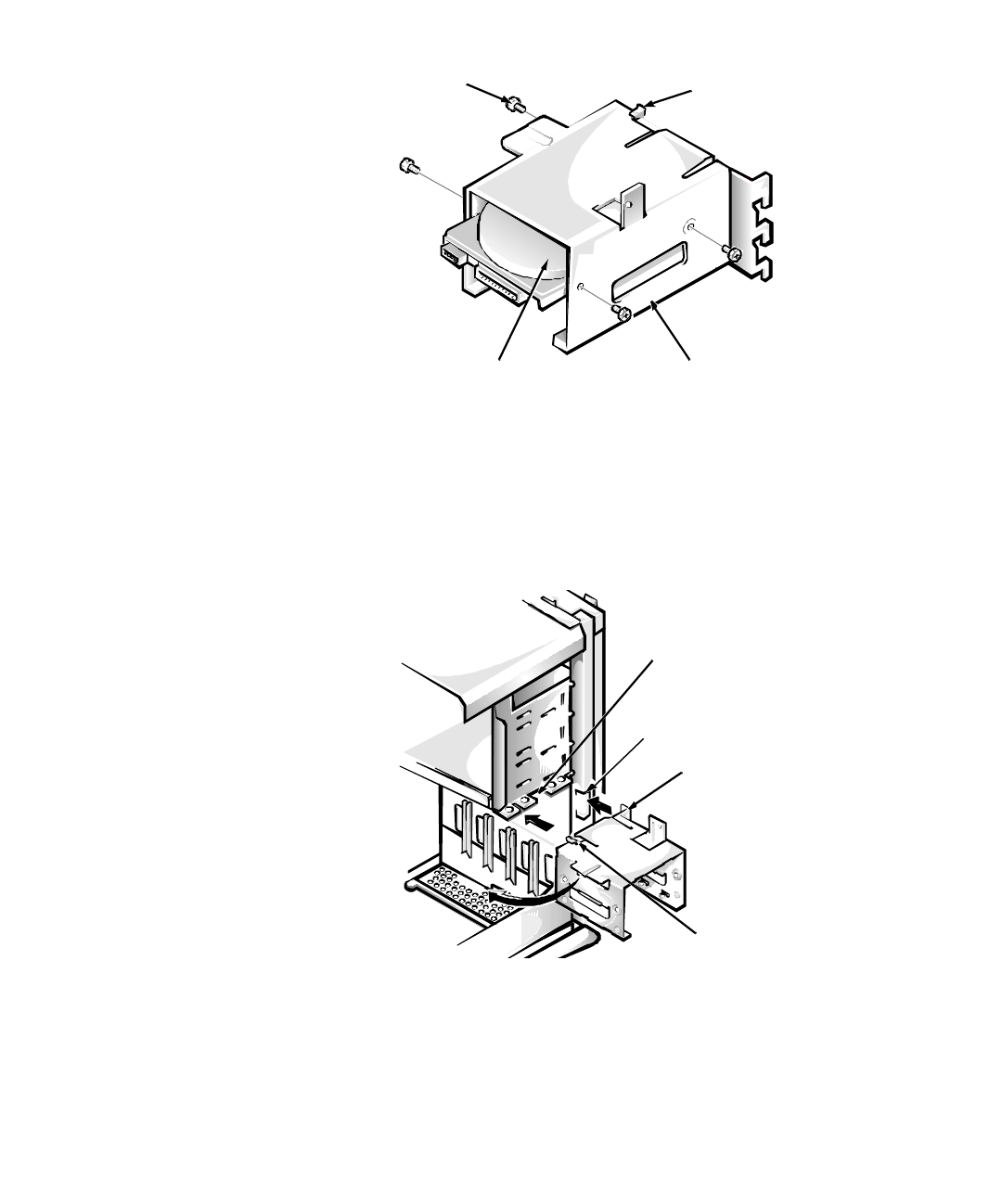

)LJXUH,QVHUWLQJD,QFK+DUG'LVN'ULYHLQWKH% UDFNHW
  5HLQVWDOOWKHKDUGGLVNGULYHEUDFNHWLQWKHFKDVVLVVHH)LJXUH
Insert the bracket’s hinge tabs into the chassis slots so that the tabs hook over the
slots. Then rotate the bracket toward the drive cage, and fit the bracket’s sliding tab
on the drive-cage slide rail. Slide the bracket into place. Reinstall the screw you
removed in step 4.
)LJXU H ,Q VHUWLQJW KH 'ULYH%U DFNHW LQW KH &KD VVLV
1.6-inch drive
screws (4)
drive bracket
sliding tab
sliding tab
hinge tabs
drive-cage
slide rail
chassis slots
