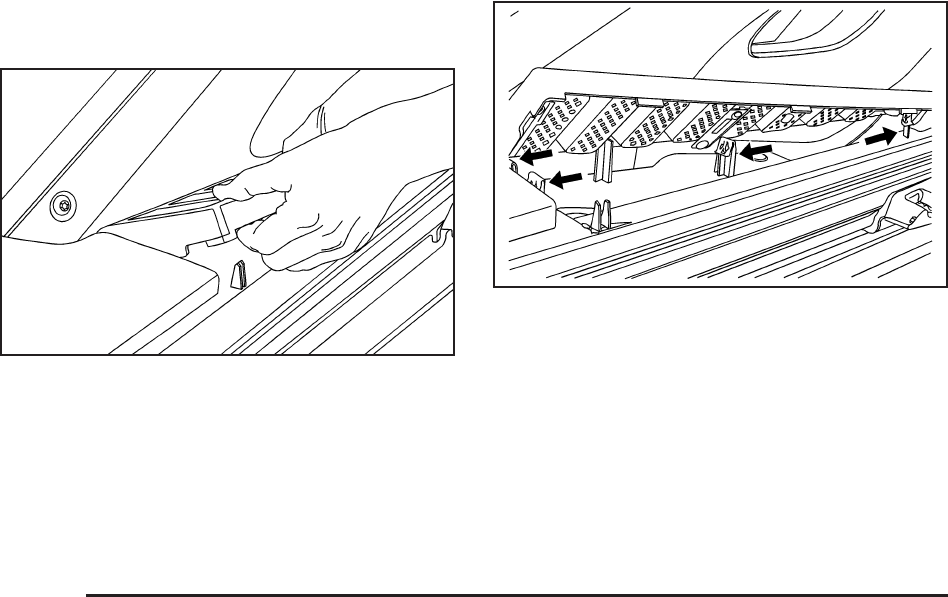

To remove each drain grate, do the following:

1. Remove the cargo panels or tonneau cover. See

Cargo Cover Panels on page 2-73 or Tonneau

Cover on page 2-91 for more information.

2. Grasp the edges of the grate and pull it out from

the vehicle. Flush the drain with clean water.

To replace the drain grate do the following:

1. Line up the clips on the vehicle with the slots in the

grate.

2. When you are sure that the clips are aligned with

the slots, push the grate down ﬁrmly.

The grate should clip into place. Do not force the grate

if it will not clip into place; realign the clips with the

holes and try again.

2-88
