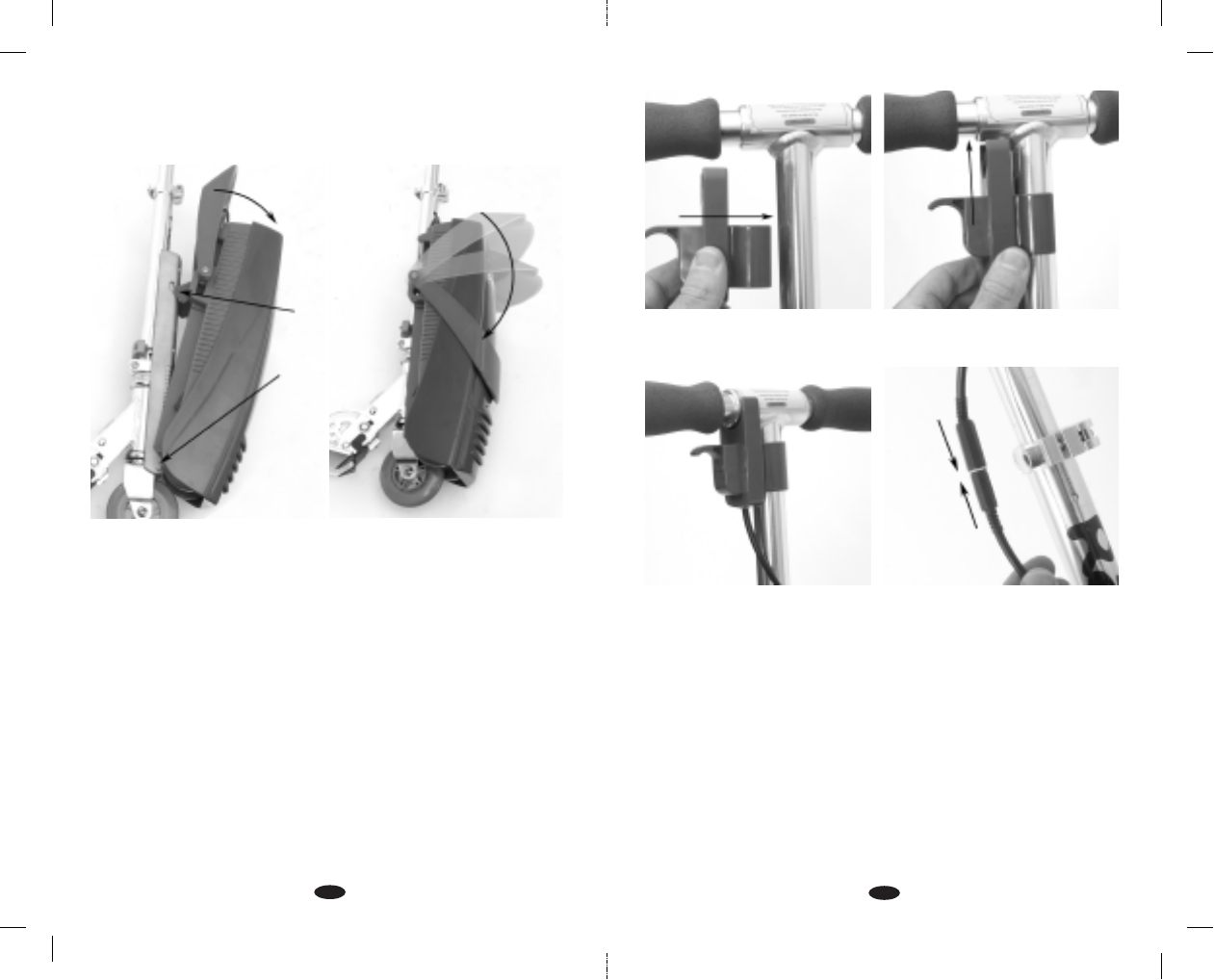

2. Slip the peg slots, which are located on either side of the
XLR8R Motor, onto the mounting pegs, which are located on
either side of the mounting bracket.
Attaching the motor
3. Insert the handle hooks into the mounting slots and press the
handle downward until it comes in contact with the XLR8R Motor
housing.
4. Attach the Power Control to the scooter's handlebars by first
placing the steerer tube clip around the steering tube and then
sliding the Power Control up until the handlebar clip attaches onto
the handlebar. Then plug the power cord into the XLR8R Motor
cord. Make sure the plug is fully inserted. A partially inserted plug
may cause erratic operation.
5
4
Attaching the power control
Final connection of the wiring (right)
Charging the Battery
The XLR8R Motor comes with a 12V battery. The unit can be
charged on the scooter or it can be removed from the scooter
during the recharging process.
