E200 and E100 belt:
1. Loosen the axle.
2. Loosen the brake anchor (this is attached with the small bolt in the
long slot on the left side of the rear fork)
3. Tighten the tension adjusters on the axle 1/8 to 1/4 tune to tension
the belt. Tighten both adjusters the exact same amount to maintain the
wheel alignment.
Note: this system of adjusters is common to motorcycles and BMX
bicycles so I your are not familiar with it, if you know anyone who is,
they would not have a problem adjusting it for you.
The belt should be "just taut" in other words snug, but not piano-wire (or
guitar string, etc.) tight. It should be tensioned similar to the fan belt on
an automobile. BE CAREFUL NOT TO ADJUST TOO TIGHT. The
tensioning system can easily impart too much tension and snap the belt
or bend the motor shaft. Adjust 1/8 to -1/4 turn at a time and check the
tension each time.
4. Once the tension is good, tighten the axle and brake anchor bolt. Test
run the scooter. Readjust as needed.

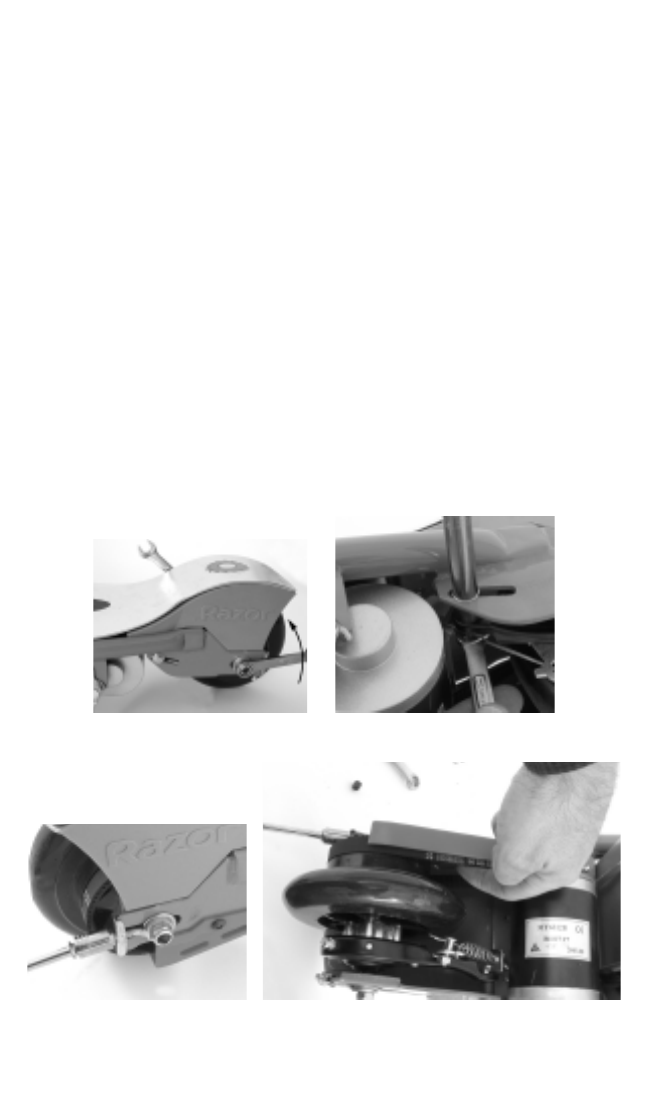

Fig 11. Loosen rear axle. Fig 12. Loosen the brake anchor screw.
Fig 13 and 14. Tighten both axle adjusters equally, 1/8 to 1/4 turn until the belt or chain is
properly tensioned.
