Magellan 5045T GPS Receiver User Manual



12

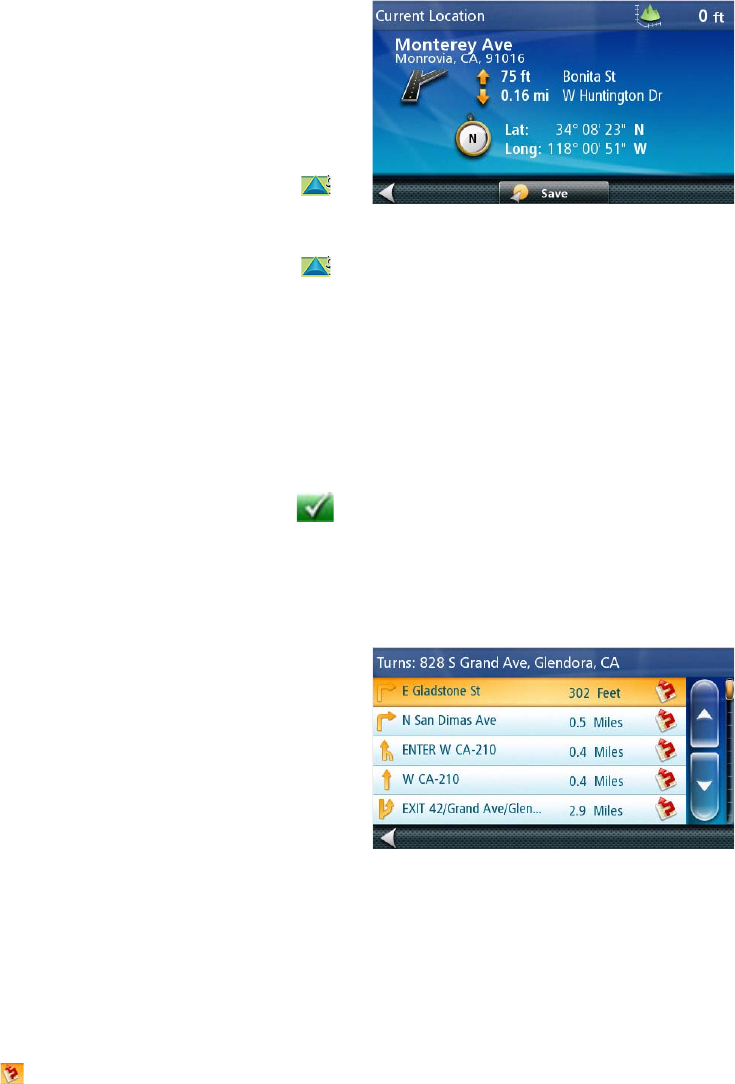

Current Location Screen
The Current Location screen displays the approximate address of
your current position, the next and previous intersections, your
latitude, longitude, heading and elevation.
Accessing the Current Location Screen
There are two ways to open the Current Location screen. From
the Map screen:
1. From the Map screen tap on the current position icon .
Saving Your Current Location to Your Address Book
1. From the Map screen tap on the current position icon .
2. Tap Save.
3. (optional) If you want to save this location to the OneTouch menu, select Add to OneTouch.
4. Edit information:
•Tap the Name field and use the keypad to enter a name for the Address Book entry. (See above for
details.)
•(optional) Tap <Enter Phone Number> to specify a phone number for the address book entry.
5. When the details for this address are acceptable, tap . (Note: entering a Name is required before
saving the Address Book entry.)
6. If you have selected to save this point to the OneTouch menu, you need to select a button for the entry.
Maneuver List (Itinerary)
This screen is accessed from the Map screen and is available
only when routing.
Each line in the Maneuver List provides details about the
maneuvers in the order that they are to be made, with the next
maneuver at the top.
The Maneuver List can be modified if you want to exclude one of
the maneuvers should you want to avoid travelling on one of the
streets listed. Instructions to exclude one of the maneuvers is
described in this chapter.
Accessing the Maneuver List
1. When actively following a route, tap the maneuver icon in the top left corner of the Map screen.
Excluding a Maneuver
This is used to modify the route to possibly avoid routing on a particular street.
1. Access the Maneuver List.
2. Tap the Avoid icon for the maneuver you want to avoid.
3. Tap Yes to confirm.
4. The Magellan RoadMate receiver recalculates the route and the Map screen returns.
Volume
The volume can be adjusted or muted from the Map screen. (The volume can also be adjusted from Settings >
Sound.)
Changing the Volume from the Map Screen
