Fig. B
Using This Service Parts Listing
This listing uses a number indentation system to
specify the parts of an assembly.Any number which
is indented to the right, indicates that it is a compo-
nent of the item to the upper left. Example:
Part no Qty Description
102-AAA # Assembly A
102-BBB # Sub-Assembly B
(Component of A)
140-xxx # Sub-Component of B
140-xxx # Sub-Component of B
102-CCC # Sub-Assembly C
(Component of A)
etc.
Using this system, the subassemblies and their
components are included if an Assembly is ordered.
Similarly, the components of a subassemblies are
included if a subassembly is ordered.
The quantity (Qty) associated with an assembly,
represents the number of times an assembly
could be
shown in the drawing. The subassembly quantity
however, is the number of times a subassembly is
used to build one assembly. Similarly, the component
quantity refers to the number of times a given compo-
nent is found in one subassembly.
MODEL AND SERIAL NUMBER INFORMATION is
located near the front left hand corner (Fig. A). The
model number, serial number and part number should
be known when asking service personnel for parts.
The serial number may consist of a number, or a
number with a letter prefix. When referring to serial
number breaks in the text of this manual, a serial
number with a prefix will have been manufactured
after a serial number without a prefix (A001 made
after 0123). Likewise, a higher prefix letter would
indicate manufacture after a lower prefix letter (B001
made after A123). Therefore, if the text refers to
units manufactured after serial number B123, this
would include “B” series numbers greater than 123,
and all numbers with a higher letter prefix.
If you cannot find the part you need, be as descriptive
as possible when placing an order:
Sprockets: give the bore size, number of teeth,
and size of keyway.
Roller chain: give the size of chain (stamped on
the side of each link) and number
of links.
Shafting: give the diameter, length, and quantity
and size of keyways.
Hardware is generally not included with parts.If you
need any hardware, check the size, the length, and
the grade (Fig. B), then check the hardware list in this
manual for the part numbers.
All hex head bolts are grade 5, and nuts are
grade 5 unless otherwise stated.
The hardware listing also includes zerks, cotter pins,
set screws, and roller chain links.
The illustrations in this manual are meant to be
used only as a guide for identifying parts and
locating their relative positions.

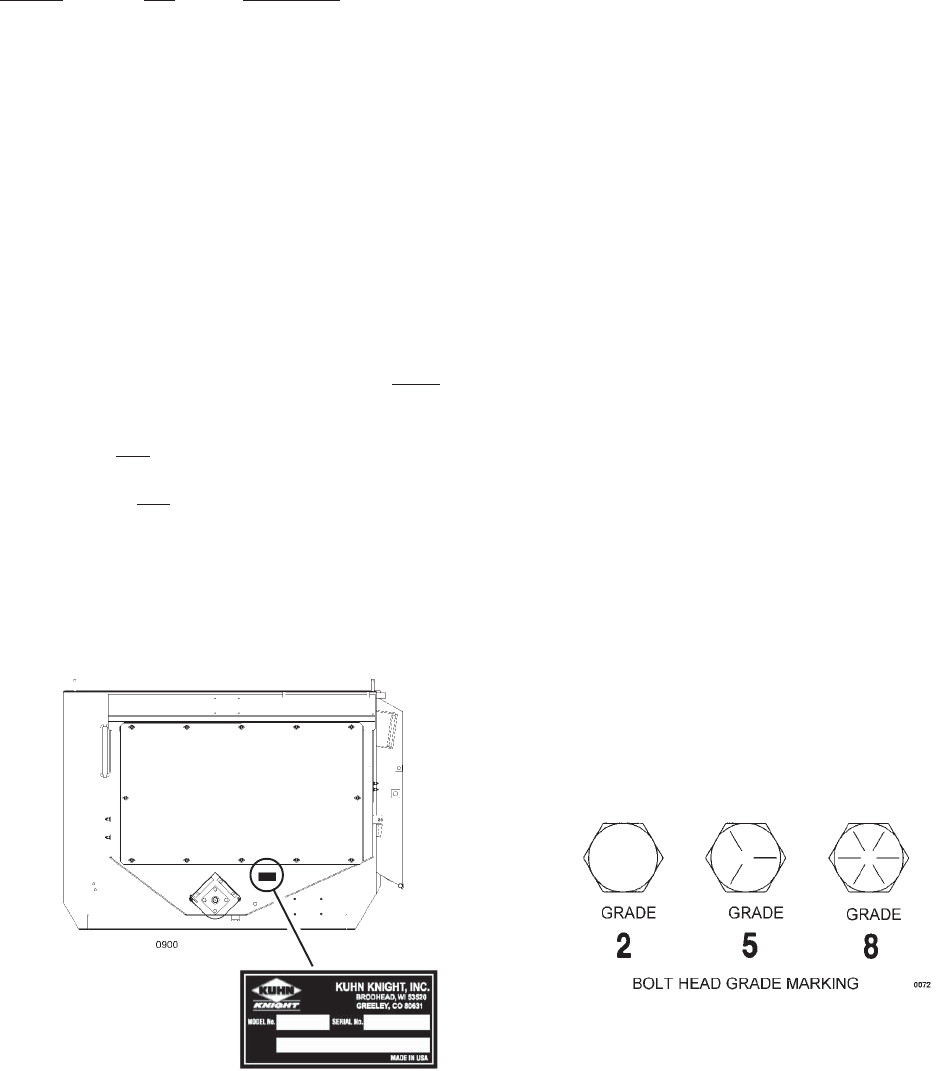

Figure A
