17
3115TS 006050 R051205
Kuhn Knight, Inc.
1501 West 7th Ave., Brodhead, WI 53520
701 Cherry Ave., Greeley, CO 80632
Back to Table of Contents
REF PART NO QTY DESCRIPTION
1 102-505 1 Slide Tray Assembly(See Decal Section For Decals)
2 136-761 1 Pivot Rod, 3/4" x 39-1/2" Lg. (secure with 170-115 cotter pin; 2ea)
3 175-927 2 Hydraulic Hose; 1/4 x 190"
171-464
A
2 Hydraulic Hose; 1/4” x 190”
4 175-686 1 Hydraulic Cylinder; 2" x 8" Stroke (ORB Ports) Seal Kit
173-270
A
1 Hydraulic Cylinder; 2” x 8” (Seal Kit # 170-075)
5 175-673 2 Adapter, 90 Deg, 06JFS x 06JM
171-030
A
2 Swivel Connector; 3/8" x 90°
6 175-675 2 Adapter Stratght; 08OM x 06JM
170-235
A
2 Reducer Bushing; 1/2” to 3/8”
7 175-687 2 Adapter, Quick Coupler
175-536
A
2 Pioneer Quick Coupler

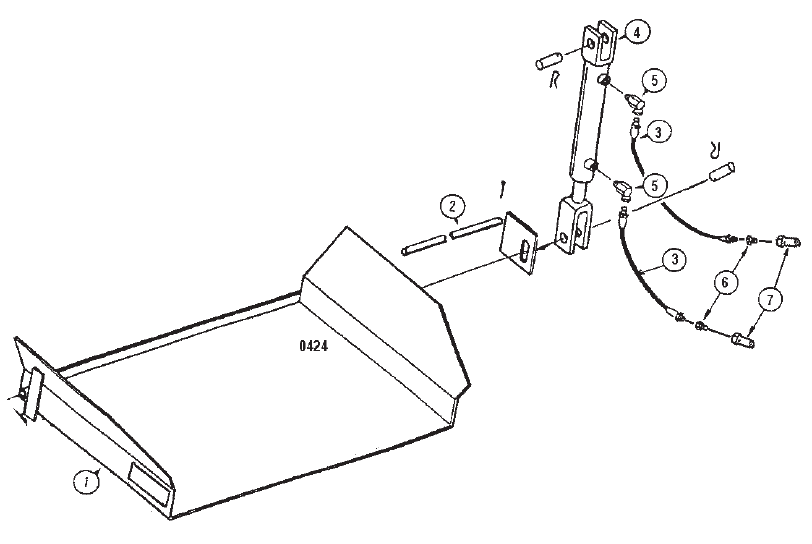

Slide Tray Parts - Trailer Type (Optional)
Pipe Thread Fittings and Hoses
A
Pipe thread fittings used on units S/N A0028 and before. Please specify pipe thread or O-Ring JIC type fittings when
ordering.
