Assembly
Prepare for assembly by having a clean, well lighted location. You will probably
assemble the lift on the floor, but a work table will be helpful for some sub-assembly.
You will need several small open-end or adjustable wrenches (not included) to
complete assembly.
1) Place the Sliding Plate (36) onto
the Platform (35) to cover the rear
wheel removal opening.
2) Attach the Ramp (37) to the end of
the Platform (35) using Washers (23)
and R-Pins (04).
3) Fit the Front Wheel Vise Assembly
(34) to the front of the platform using
Bolts (33), Washers (23), and Nuts
(30). Always select the position
that will best suit your particular
motorcycle.
4) Attach the Stop Plate (32) using
Bolts (33), Washers (23), and Nuts
(30).
5) Fit the Lift Foot Pedal (11) over
the Pump Piston Spindle (9).
6) Fit the Release Foot Pedal (10)
over the Release Valve Spindle
(5).
First Use Instructions
The Hydraulic unit is prefilled, so that you do not have to fill the hydraulic
cylinder before use. However, during shipping the oil may become agi-
tated. Before first use, let the oil settle for 1 hour before purging the system.
NOTE: Failure to let the oil settle may result in air remaining in the oil, caus-
ing the need for a second purging.
1) Purge the system of air by fully pressing the Release Foot Pedal (10) and
pumping the Foot Pedal (11) 15 to 20 times.
2) Before first use, test the lift by raising it to full height and then lowering it.
Depress the Foot Pedal (10) slowly to control the rate of descent.
If the lift does not operate properly, let the oil settle for an additional hour before
repeating the purging process.

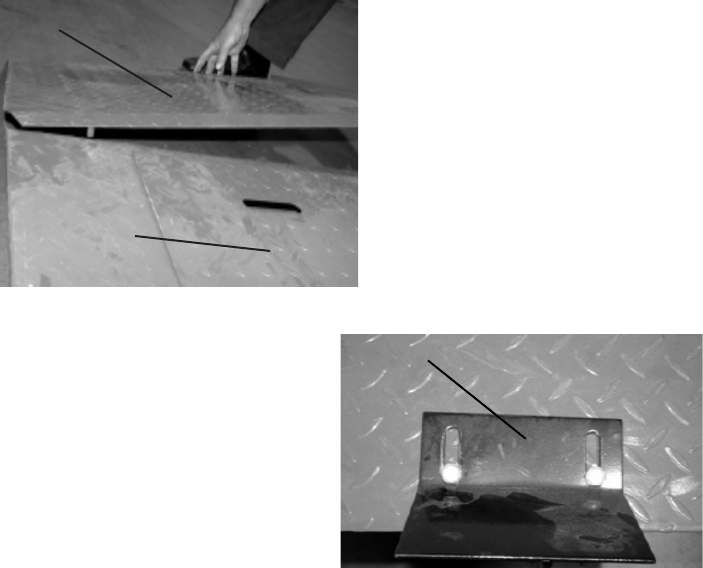

Ramp (37)
Platform (35)
Sliding Plate (36)
Stop Plate (32)
