2 GPSX 17X HVS WIRING AND PINOUTS
The GPS 17x HVS interfaces to a serial port. The unit accepts TIA-232-F (RS-232) level inputs and transmits
voltage levels from ground 3.3 V, TIA-422 (RS-422) polarity.
2.1 GPS 17X HVS PINOUT
GPS 17x HVS
Pin #
Color Signal Name Wire Gauge
1 White Receive Data A 22
2 Black Ground 22
3 Red VIN 22
4 Orange Accessory On 22
5 White/Red Transmit Data B 22
6 Gray Transmit Data A 22
7 White/Orange Receive Data B 22
8 Violet Pulse Per Second (PPS) 22
Table 1: GPS 17x HVS Pinout

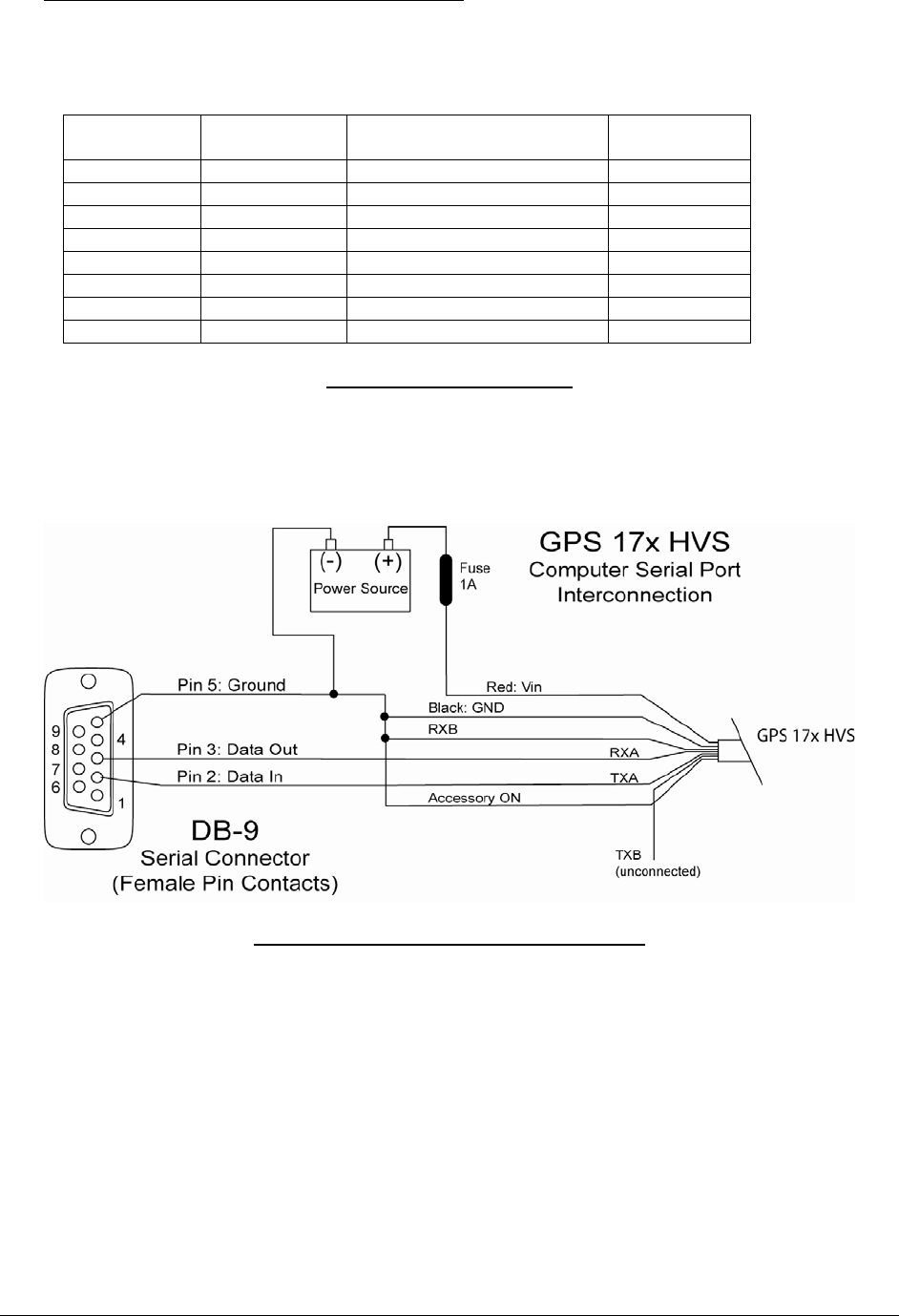

2.2 GPS 17X HVS WIRING DIAGRAMS
Figure 1: Computer Serial Port Interconnection
190-00885-07 GPS 17x HVS Technical Specifications Rev. A
Page 6
