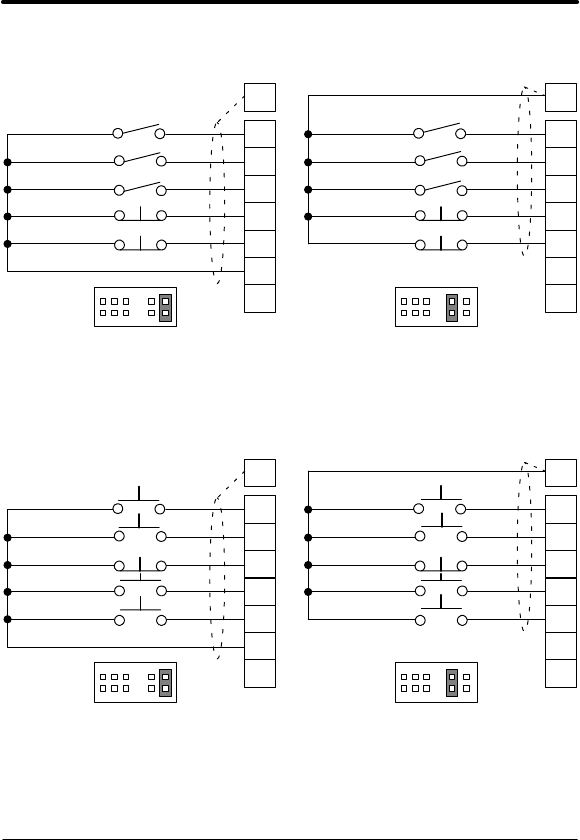

2 Wire Run/Stop, Electronic Potentiometer Connections
Parameter 21 - Operating Mode = 6
CM
FWD
REV
PS3
PS2
PS1
V+
MOL
Shield
Forward
Reverse
Preset Speed #4
Increase
Decrease
J19
Pull–Up Logic
CM
FWD
REV
PS3
PS2
PS1
V+
MOL
Shield
Forward
Reverse
Preset Speed #4
Increase
Decrease
J19
Pull–Down Logic
3 Wire Run/Stop, Electronic Potentiometer Connections
Parameter 21 - Operating Mode = 7
CM
FWD
REV
PS3
PS2
PS1
V+
MOL
Shield
Forward
Reverse
Stop
Increase
Decrease
J19
Pull–Up Logic
CM
FWD
REV
PS3
PS2
PS1
V+
MOL
Shield
Forward
Reverse
Stop
Increase
Decrease
J19
Pull–Down Logic
See recommended tightening torques for terminal connectors.
