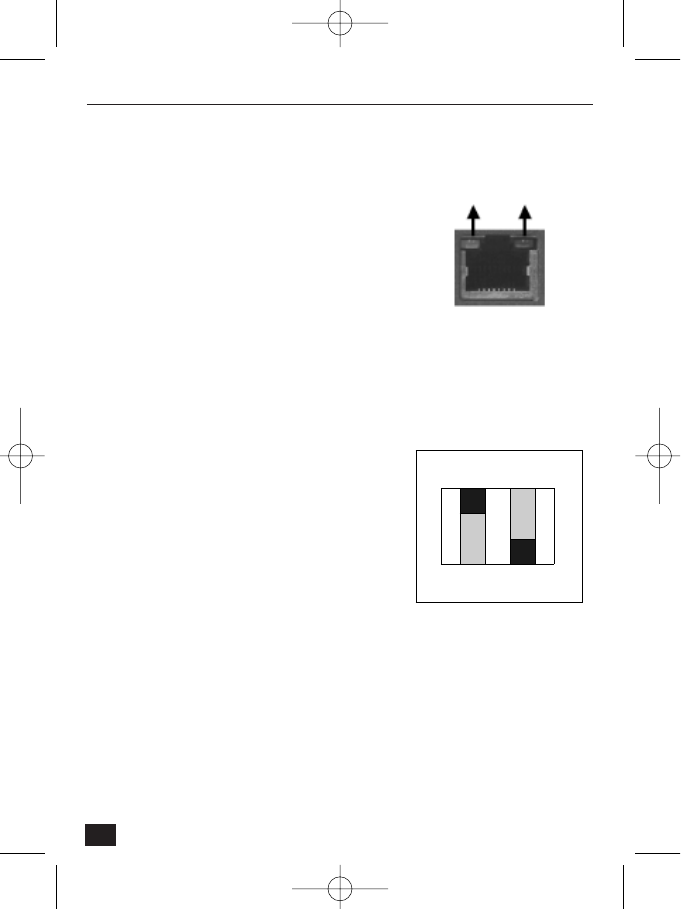

Description on LED of Ethernet Port
Yellow LED: This LED indicates the status of
data transmission. After power is supplied, it is
on for the first 4-5 seconds and then it goes off.
It blinks continuously when NetCam 2 transmits
data.
Green LED: This LED indicates the status of
networking. After power is supplied, it is on for
the first 1-2 seconds, and then it blinks once at
every one second as long as the network is
connected.
Description of DIP Switches
This is to designate the function of the BNC
video connector.
With the right hand dip switch in position V-
out, the internal camera video output is supplied
to the video BNC. With this dip switch in the
V-in position, the video BNC is the input for
video channel 2. The right hand dip switch sets
the video input to 75 Ohm or high impedance.
