5.7 Resins
z RoHS required
z WEEE required.
z Resin type/selection refer to Project Book Section 7.2 Plastic material.
5.8 If paint is used
z RoHS required
z WEEE require
z If new painting type need to implement, refer to UN-D 1235.
5.9 Plastic mold tooling
z Tooling to be designed to minimize cosmetic defects induced by molding process (sink, blush, weld lines,
gate marks, ejector marks, etc.). Refer to “TYV61-90007”.
z Painting to cover up cosmetic defects due to molding is strongly discouraged.
5.10 Plastics flammability
z All Plastics to be Flame Retardant.
z Base / Pedestal to be Flame Retardant UL 94-HB.
z All major plastic parts (bezel, back cover, base) need to be molded from same resin.
z Plastic resin type selection should be referred to “TY R83-2-9002-1”.
5.11 Texture/Glossing of housing
z The texture area and texture no should follow Philips make-up sheet.
z The exterior surfaces shall have a uniform texture.
z Philips must approve the mold texturing.
z Detail document for texture refer to “UN-D249”, “UN-D 600”.

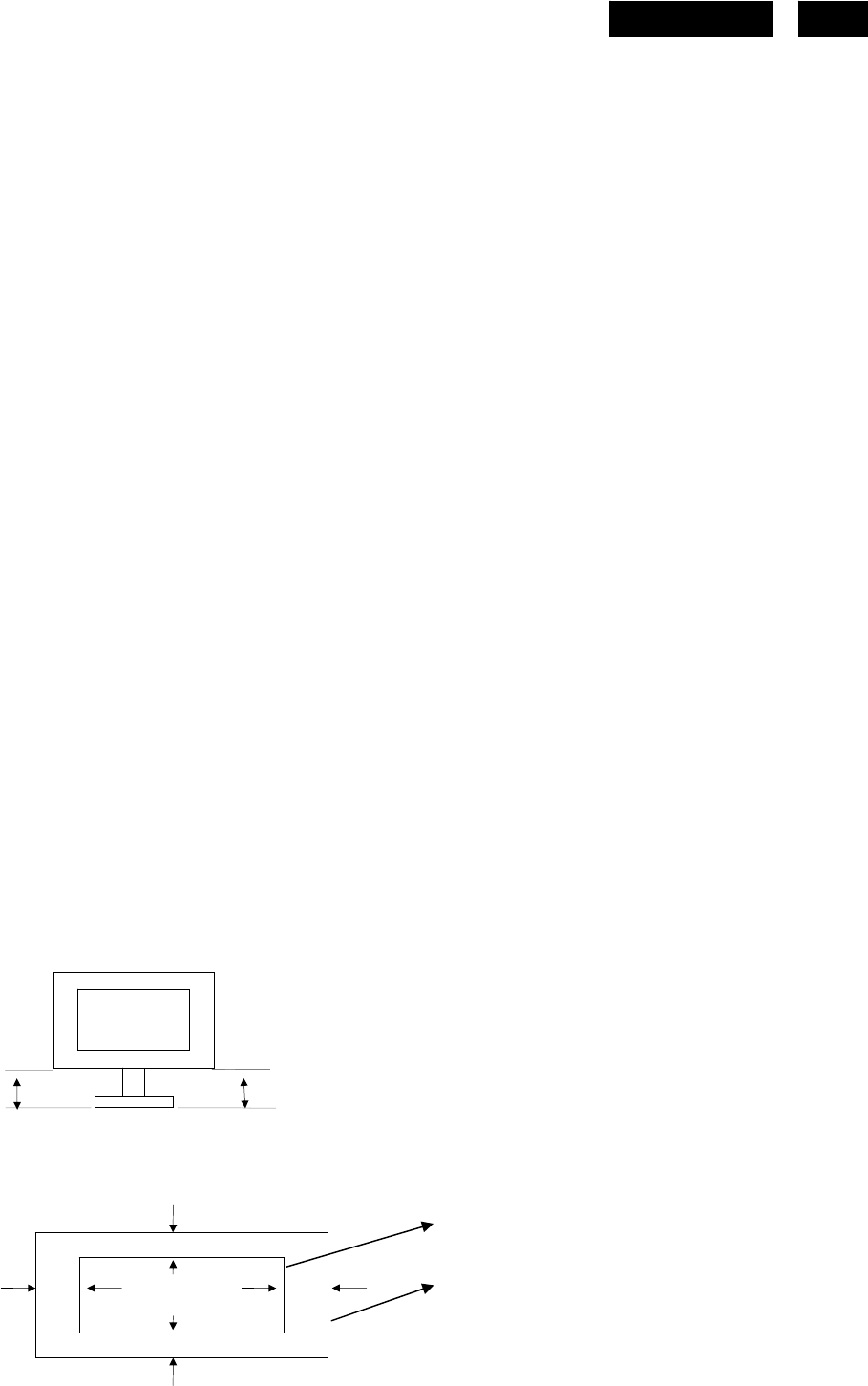

5.12 Tilt and swivel base
z Tilt angle : -5 ° +2/- 0 ° (forward)
+20 °+0/-2 ° (backward)
z Tilt for left and right:
︱A-B︱≤4.0MM
z Black side and cut side：
1. Visual area
B
L R
U
D
