Connecting video and audio signals 11
English

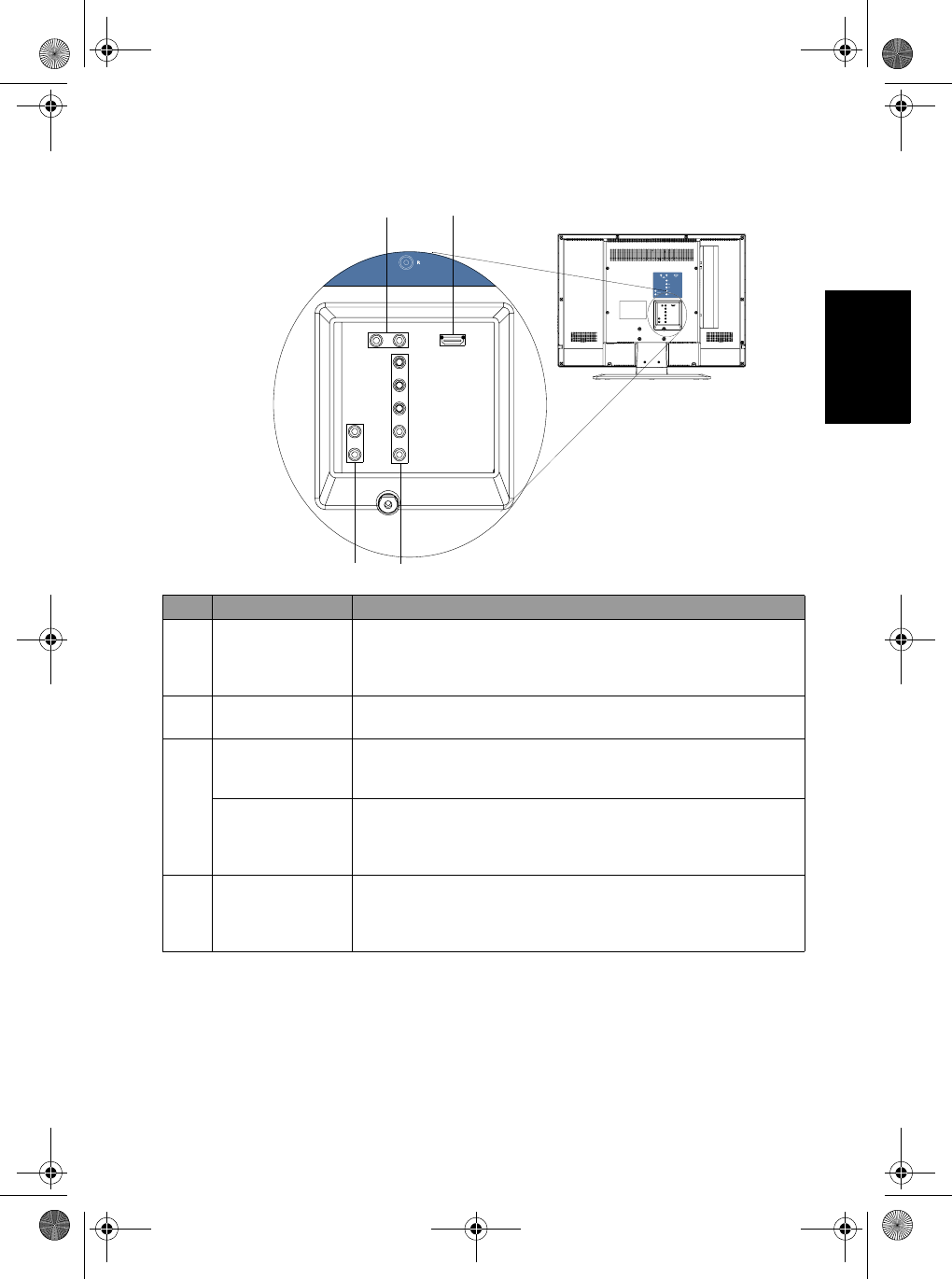

Rear view
No. Name Description
1
HDMI
Connect to the DVI digital video or HDMI digital audio/
video output of your digital source device. See "Connecting
the DVI input" on page 14 and "Connecting the HDMI
input" on page 14.
2
DVI-AUDIO L/R
Connect to the DVI digital audio output of your digital
source device. See "Connecting the DVI input" on page 14.
3
Y CB/PB CR/PR
Connect each to the Component Video (Y CB/PB CR/PR)
output of an appropriate video source device. See
"Connecting the Component Video input" on page 13.
AUDIO L/R
Connect each to the audio output of an appropriate video
source device to match that of each Component Video
input. See "Connecting the Component Video input" on
page 13.
4
AUDIO OUT L/R
Connect to the audio input of an audio or sub-woofer
amplifier. This output is always available, however, its
level is fixed and cannot be controlled by the Volume. See
"Connecting the stereo audio output" on page 15.
1
2
3
4
