Connect the corresponding INPUT sockets of the VCR to the MONITOR OUTPUT
sockets on the rear of the TV.
To enhance the sound of your TV, connect the AUDIO L and R sockets to an external
audio system instead of the VCR. For mono equipment, connect only the AUDIO L socket.
Connection for recording from one VCR to another VCR
Connect the sockets of the VCR which you wish to record from, to the corresponding
sockets at either AV1 or AV2
– Connect the sockets of the receiving VCR to the MONITOR OUTPUT sockets on the
rear of the TV.
ANTENNA
OUT
IN
OUT
IN
AUDI
O
R
L
VIDEO
IN
OUT
L/Mono
R
S-VIDEO
VIDEO
AUDIO
AV1 in
AV2 inMonitor out�
COMPONENT VIDEO INPUT
Y
Pb
Pr
ANTENNA
OU
T
IN
OU
T
IN
AUDIO
R
L
VIDEO
IN
OU
T
ANTENNA
OUT
IN
OUT
AUDIO
R
L
VIDEO
OUT
L/Mono
R
S-VIDEO
VIDEO
AUDI
O
AV1 in
AV2 inMonitor out�
COMPONENT VIDEO INPUT
Y
Pb
Pr
AV sockets on the
rear of TV
VCR (equipped with Video
and Audio input sockets)
AV sockets on
the rear of TV
VCR (equipped with Video
and Audio input sockets)
VCR 1
VCR 2
Back of VCR

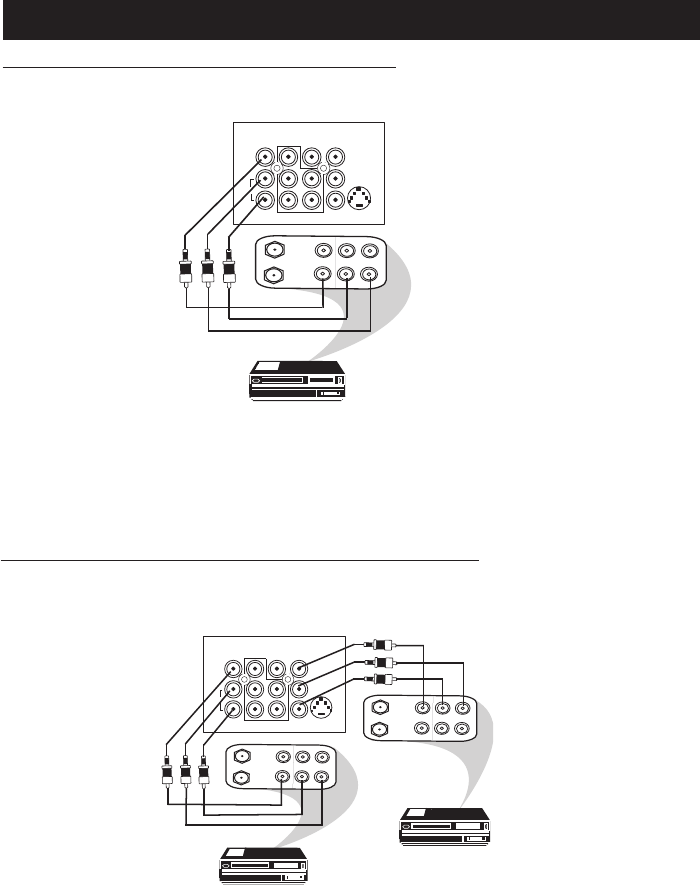

CONNECTING THE AUDIO/VIDEO SOCKETS (RECORDING)
Connection for recording from the TV channel
