35
q

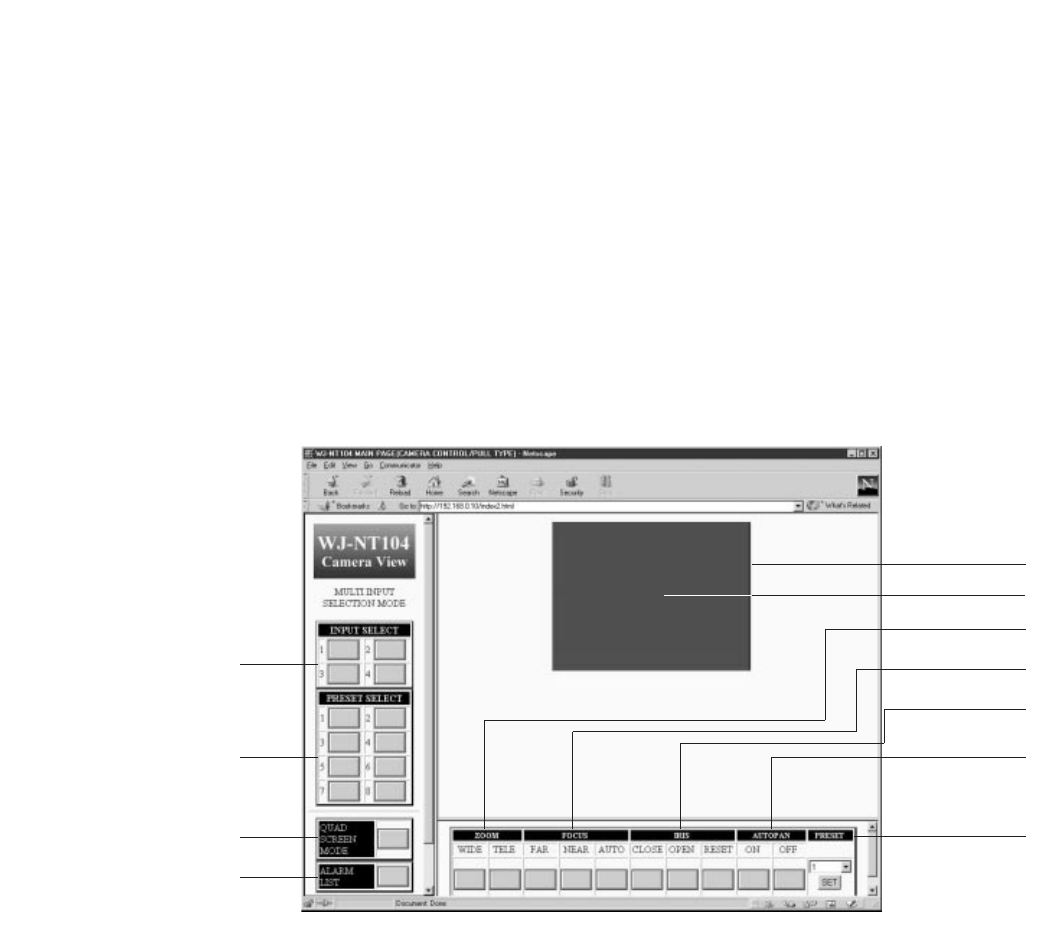

● Multi Input Selection Mode
q INPUT SELECT
These buttons are used to switch images from up to
four cameras.
A change of channel by one user affects only that ter-
minal, but not the channels monitored by other users.
w PRESET SELECT
To move the combination camera (option) connected to
the WJ-NT104 to any of 8 preset position numbers.
To register preset positions refer to the CAMERA
MENU SETUP on page 53.
e QUAD SCREEN MODE
Clicking this button will display images of up to four
cameras in quad pattern on a single monitor screen.
r ALARM LIST
Camera video input before and after alarm input can
be temporarily stored in the internal memory of the WJ-
NT104.
For alarm display see ALARM LIST on page 37.
t Live image display
Images of the selected camera are displayed on the
default page as semi-animated pictures.
y Pan/Tilt
Clicking anywhere on the live image moves the con-
nected combination camera (option) up and down, or
to the right and left. The camera pan/tilt angle
decreases as the point clicked moves closer to the
image center. Clicking the image center will not move
the camera. Zooming does not change the camera
pan/tilt angle. Click the image repeatedly to move the
camera to the desired position. You cannot pan or tilt
the camera continuously by dragging on the live
image.
u IRIS
The connected combination camera (option) can be
controlled to close or open the iris by clicking the
[OPEN] or [CLOSE] button under IRIS. Clicking the
[OPEN] or [CLOSE] button will open or close the cam-
era iris for a specified time, after which the operation is
released automatically.
Clicking the [RESET] button on the screen will reset
the iris of the displayed camera to the factory default
setting. Iris control cannot be retained by keeping the
[OPEN] or [CLOSE] button depressed. You need to
click the [OPEN] or [CLOSE] button again.
i AUTOPAN
The auto pan status of the connected combination
camera (option) can be changed by clicking the [ON]
or [OFF] button under AUTOPAN.
Note: When LOCAL is selected in the camera setup,
AUTOPAN automatically stops after 1 minute.
When REMOTE is selected in the camera setup,
AUTOPAN will not be released automatically.
o PRESET
To move the connected combination camera (option) to
any of 64 preset positions. Select a preset position
number then press the [SET] button to move the cam-
era to the position.
w
e
r
t
!1
y
!0
o
i
u
