51-3849, 5/26/06 25
MAINTENANCE SECTION
LEVELING THE SWEEPER

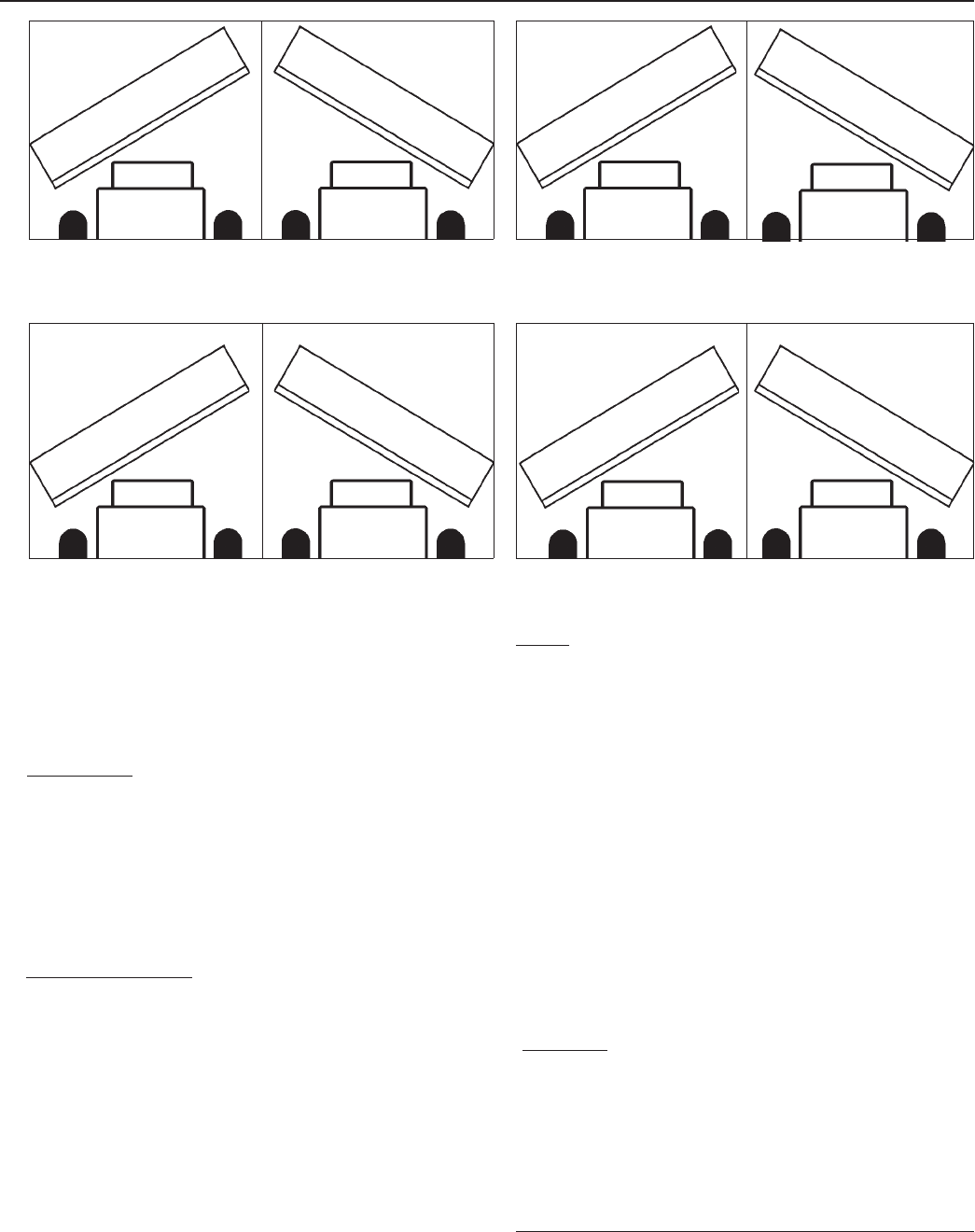

RLH/RLCH - To correct leveling problems in:
• figure 18, lengthen the hitch toplink.
• figure 19, shorten the hitch toplink.
• figure 20, lower the adjustable 3-Point hitch arm.
• figure 21, raise the adjustable 3- Point hitch arm.
Low
High
High
High
High
High
High
HighHigh
Low
Low
Low
Low
Low
Low
Low
figure 18
figure 20
figure 19
figure 21
Loader - To correct leveling problems shown in:
• figure 18, extend tilt cylinders.
• figure 19, retract tilt cylinders.
• figure 20, loosen hardware that attaches the swing
assembly to the brush head assembly; lower the
left-hand side of the brush head until both sides are an
equal distance above the ground. Tighten the
hardware.
• figure 21, loosen hardware that attaches the swing
assembly to the brush head assembly; lower the right-
hand side of the brush head until both sides are an
equal distance above the ground. Tighten the
hardware.
Scissor swing - To correct leveling problems in:
• figure 18, turn leveling screws out. (figure 20, A)
• figure 19, turn leveling screws in. (figure 20, A)
• figure 20, turn the adjustment screw in. (figure 20, B)
• figure 21, turn the adjustment screw out. (figure 20, B)
Plate swing on tractor - To correct leveling problems
shown in:
7. Measure to see if the brush head assembly is level when
angled. First, angle the brush head to the right. Measure
as in step 4. Then, angle the brush head to the left.
Measure again. If measurements are equal, the sweeper
is level. If not, proceed with this step.
• figure 18, turn leveling screws out. (figure 21, A)
• figure 19, turn leveling screws in. (figure 21, A)
• figure 20, loosen hardware that attaches the swing
assembly to the brush head assembly; lower the
left-hand side of the brush head until both sides are an
equal distance above the ground. Tighten the hardware.
• figure 21, loosen hardware that attaches the swing
assembly to the brush head assembly; lower the right-
hand side of the brush head until both sides are an equal
distance above the ground. Tighten the hardware.
