ZENworks® ESM 3.5 Administrator’s Manual 125
TCP/UDP Ports
Endpoint data is primarily secured by controlling TCP/UDP port activity. This feature allows you
to create a list of TCP/UDP ports which will be uniquely handled in this firewall setting. The lists
contain a collection of ports and port ranges, together with their transport type, which defines the
function of the range.
Note:
This feature is only available in the ESM installation, and cannot be used for UWS security policies.
To access this control, open the Locations tab, click the “+” symbol next to Firewall Settings,
click the “+” symbol next to the desired Firewall, and click the TCP/UDP Ports icon in the
policy tree on the left.

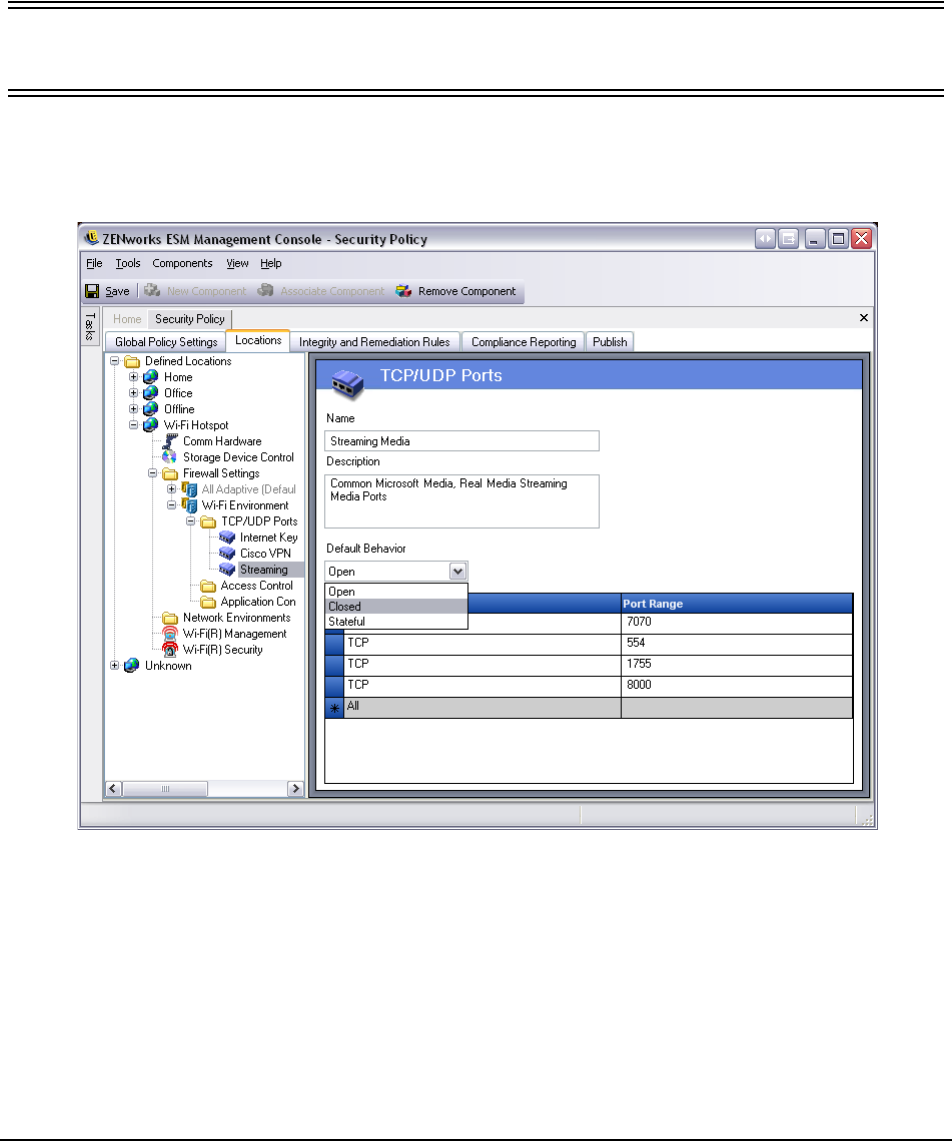

Figure 91 : TCP/UDP Ports Settings
New TCP/UDP port lists can be defined with individual ports or as a range (1-100) per each line
of the list.
To create a new TCP/UDP port setting:
Step 1: Select TCP/UDP Ports from the components tree and click the Add New button
Step 2: Name the port list and provide a description
Step 3: Select the port behavior from the drop-down list. The optional behaviors are:
