Climate control system
390

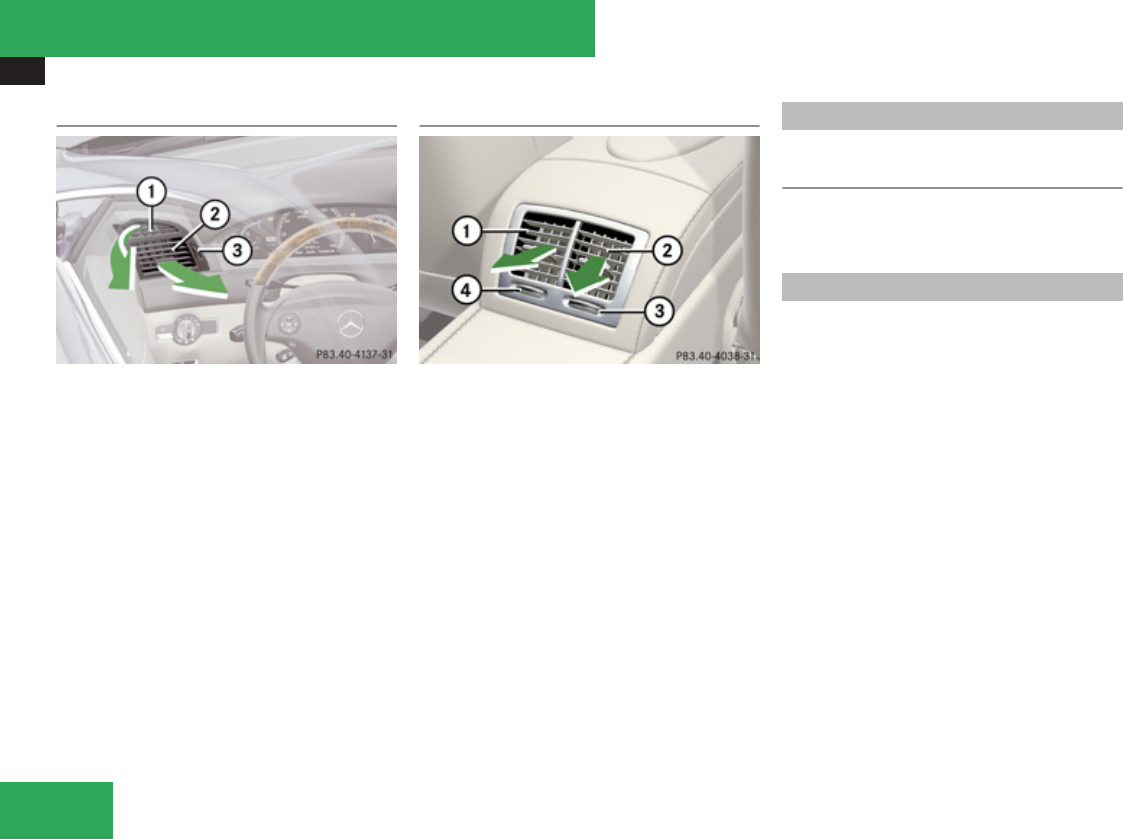

Side air vents
Example illustration driver’s side
1
Left side defroster air vent, fixed
2
Left side air vent, adjustable
3
Thumbwheel for air volume control for
adjustable left side air vent
X
Opening/closing: Turn thumbwheel 3
upward or downward.
Rear center console air vents
1
Left rear center air vent, adjustable
2
Right rear center air vent, adjustable
3
Thumbwheel for air volume control for
right rear center air vent
4
Thumbwheel for air volume control for left
rear center air vent
X
Opening/closing: Turn thumbwheel 3 or
4 in the required direction.
Adjusting air distribution
Air distribution in front/rear passenger
compartment via COMAND
The air distribution can be adjusted via
COMAND (Y page 224).
Adjusting air volume
You can adjust the air volume separately on
each side if the passenger compartment.
You can adjust the air volume via COMAND
(Y page 224).
X
Decrease/increase: Press rocker
switches Q up or down.
