490
Practical hints
Replacing bulbs

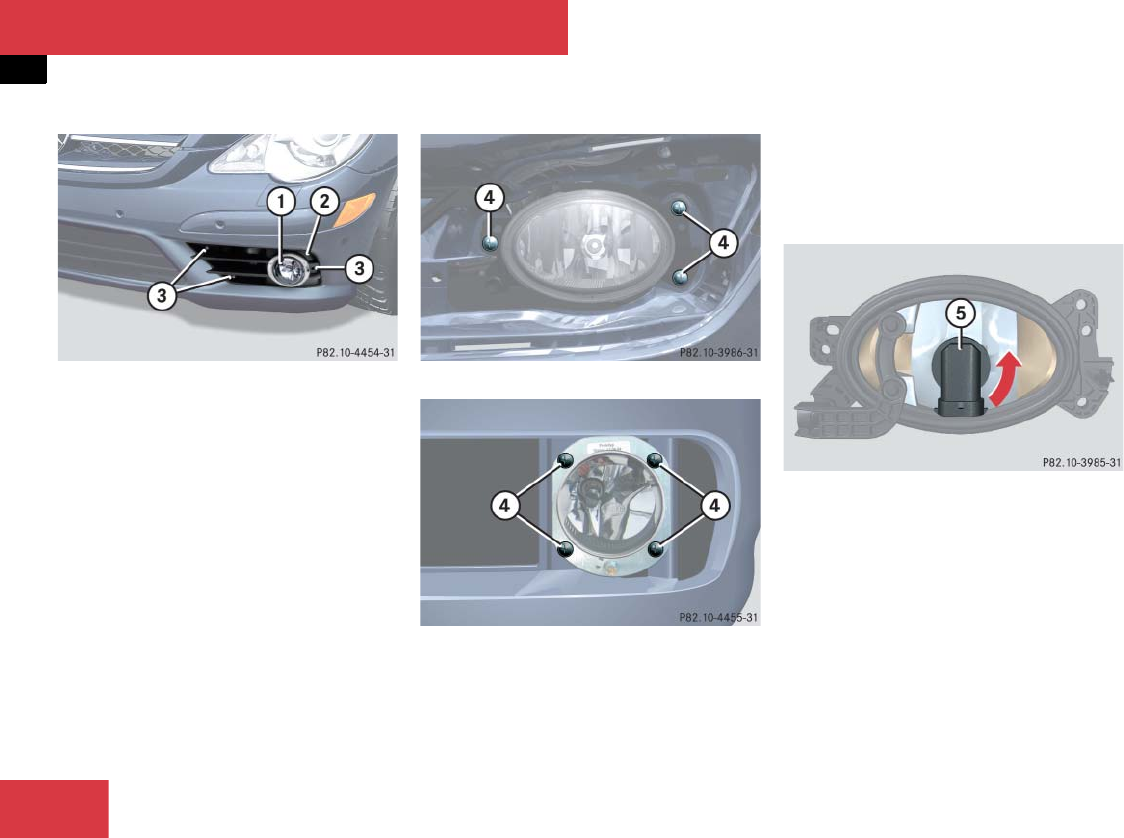

Example illustration (R 63 AMG)
1 Corner-illuminating front fog lamp*
2 Cover
3 Retaining screws
̈ Remove retaining screw(s) 3.
̈ All models except R 63 AMG:
Insert a suitable object (e.g.
screwdriver) at point indicated by the
arrow and pry out cover 2.
Cover 2 is released.
̈ Swing cover 2 outwards and take it
off.
̈ R63AMG:
Take off cover 2.
Example illustration (except R 63 AMG)
Example illustration (R 63 AMG)
4 Retaining screws
̈ Remove screws 4 that retain front fog
lamp 1.
̈ Remove corner-illuminating front fog
lamp 1.
5 Corner-illuminating front fog lamp bulb
socket
i
R 63 AMG only:
An additional adapter cable is used to connect
the bulb socket with the vehicle’s electrical
circuit. Reuse the adapter cable after replacing
the bulb.
