Technical data

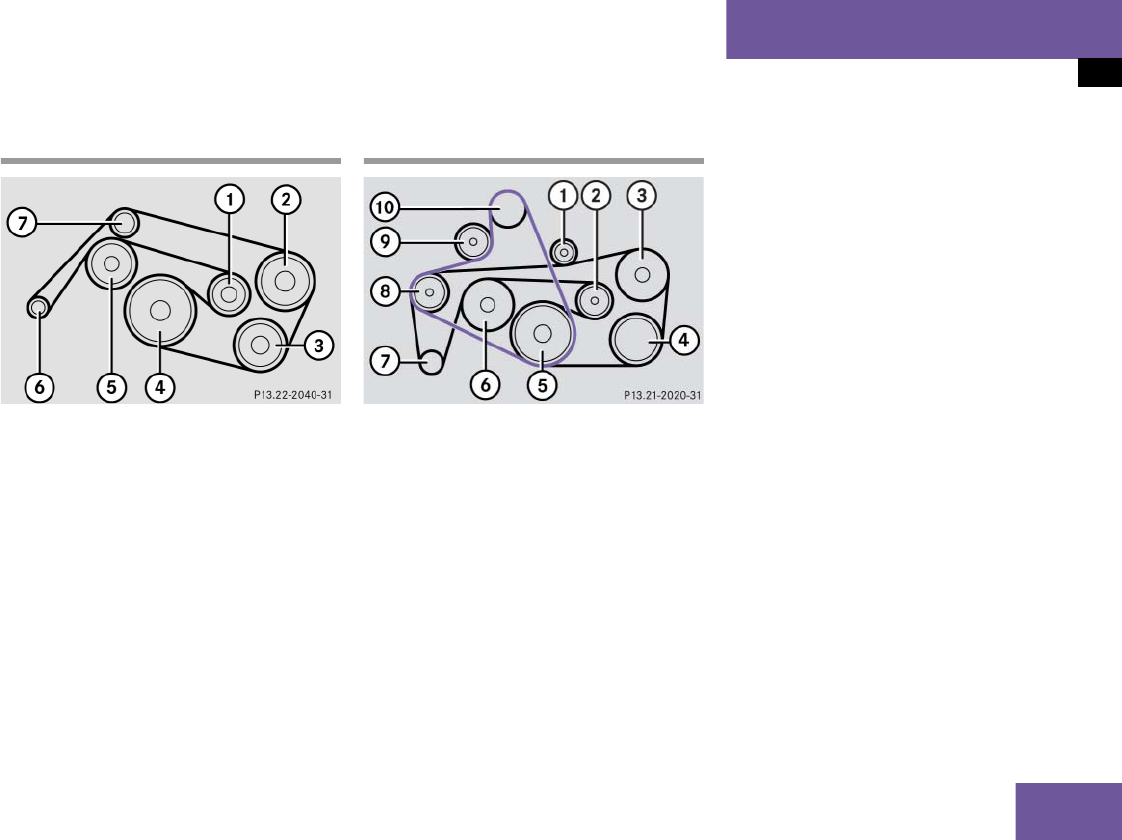

Layout of poly-V-belt drive
̄ Layout of poly-V-belt drive
CLS 500
1 Automatic belt tensioner
2 Power steering pump
3 Air conditioning compressor
4 Crankshaft
5 Coolant pump
6 Generator (alternator)
7 Idler pulley
CLS 55 AMG
The CLS 55 AMG has two poly-V-belts
(belt one shown in purple/belt two shown
in black).
1 Idler pulley
2 Automatic belt tensioner
3 Power steering pump
4 Air conditioning compressor
5 Crankshaft
6 Coolant pump
7 Generator (alternator)
8 Idler pulley
9 Automatic belt tensioner
a Super charger
