IInnssttrruuccttiioonn SShheeeett FFoorr BBooxx 11 112200”” OOrr 113311””
EEnnggiinnee AAsssseemmbblliieess OOrr EEnnggiinnee RRaaccee KKiittss
STEP 5: Oil filter mount installation
• Remove stickers located over 2 holes located where filter mounts to case.
• Refer to the instructions included with your oil filter mount kit for Engine “A” 99-05 FXD, and
99-06 FLH.
• For Engine “B” and 06-Pres.FXD remove 1-7/8 sticker from case where filter mounts. Thread in
adapter with lock patch into case with a 7/8” hex socket, torque to 120-168 inch-lbs.
STEP 6: Sprocket shaft spacer installation
• Inspect the engine sprocket shaft, seal and bearing cavities for any
packaging debris before continuing. See Fig. 14
• Locate spacer specific to your application
• Dyna Models 24038-99A “A” for 1999 to 2005
• Softail
®
Models 24038-99A “B” for 2000
• FL Models 24008-99A “A” & 2006 Dyna
™
Models
• Softail
®
Models 24039-01A “B” for 2001-2006
• Inspect spacer for nicks and dents.
• Lightly coat outside diameter of sprocket shaft spacer and the inside
of the sprocket shaft seal with clean 20w-50 H-D
®
motor oil.
• Slide sprocket shaft spacer onto sprocket shaft, (see illustration)
until it is seated on the sprocket shaft bearing. See Fig.15. If you pur-
chased a complete engine assy, go to page 11 step 11 of the Box 3
Instructions #1208-1353.
You now have a completed “Short Block.”
Cover and seal this assembly with the supplied clear plastic bags. When ready
proceed to Box 2 installation instructions.
NOTES

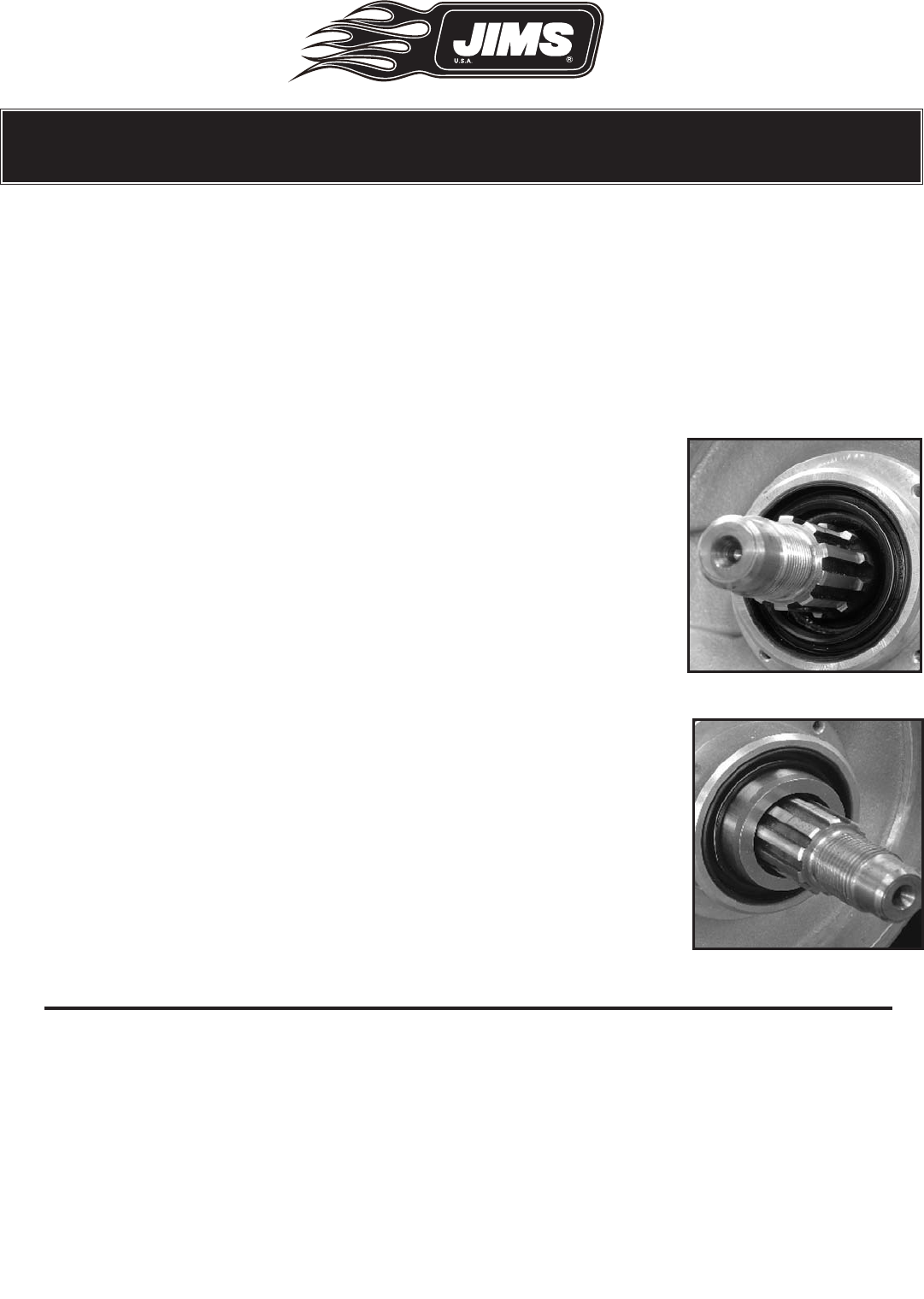

Fig.14- Inspect
Fig.15- Install spacer
