Removal and Replacement Procedures
Maintenance and Service Guide 5–33

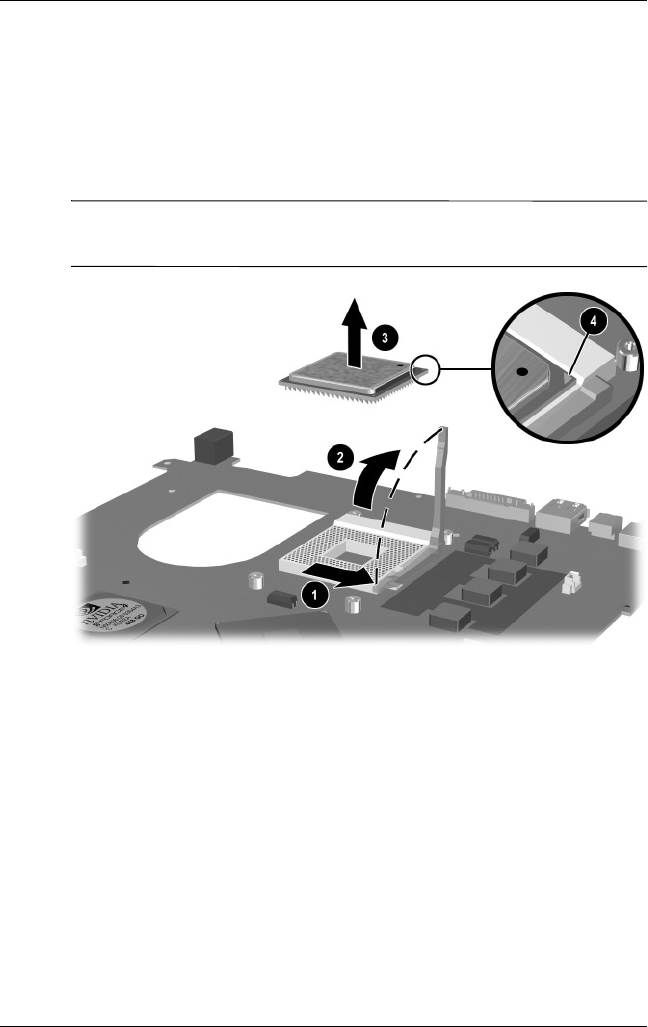

2. Slide the processor release lever to the right 1 until it
disengages from the clip on the back of the processor socket.
3. Lift the lever up and swing it to the back 2 until it is in an
upright position.
4. Lift the processor straight up 3 to remove it.
Note that the gold triangle 4 on the processor should be aligned
in the rear right corner when you install the processor.
Removing the Processor
Reverse the above procedure to install the processor.
