External component identification
Maintenance and Service Guide 2–7

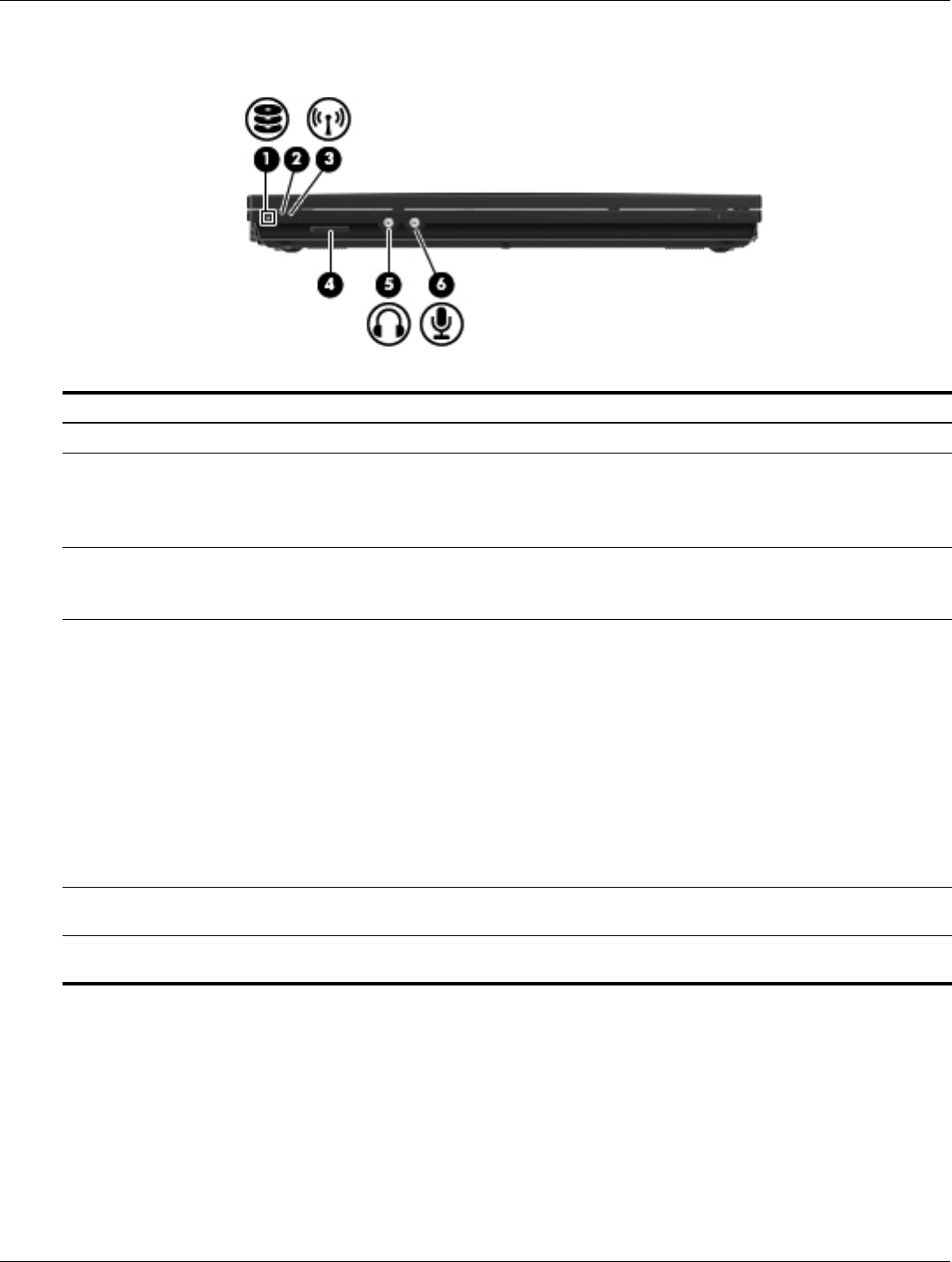

Front components
Item Component Description
(1) Drive light Blinking: The flash drive or optional optical drive is being accessed.
(2) Wireless button Turns the wireless feature on or off, but does not establish a
wireless connection.
✎
A wireless network must be set up in order to establish a
wireless connection.
(3) Wireless light ■ Blue: An integrated wireless device, such as a wireless local area network
(WLAN) device and/or a Bluetooth® device, is on.
■ Amber: All wireless devices are off.
(4) Media Card Reader Supports the following optional digital card formats:
■ Memory Stick (MS)
■ Memory Stick Pro (MSP)
■ MultiMediaCard (MMC)
■ MultiMediaCard 4.2 (MMC Plus, including MMC Plus HC)
■ Secure Digital (SD) Memory Card
■ Secure Digital High Capacity (SDHC) Memory Card
■ Secure Digital High Speed (SDHS) Memory Card
■ xD-Picture Card (XD)
■ xD-Picture Card (XD) Type H
■ xD-Picture Card (XD) Type M
(5) Audio-out (headphone) jack Produces sound when connected to optional powered stereo speakers,
headphones, ear buds, a headset, or television audio.
(6) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
