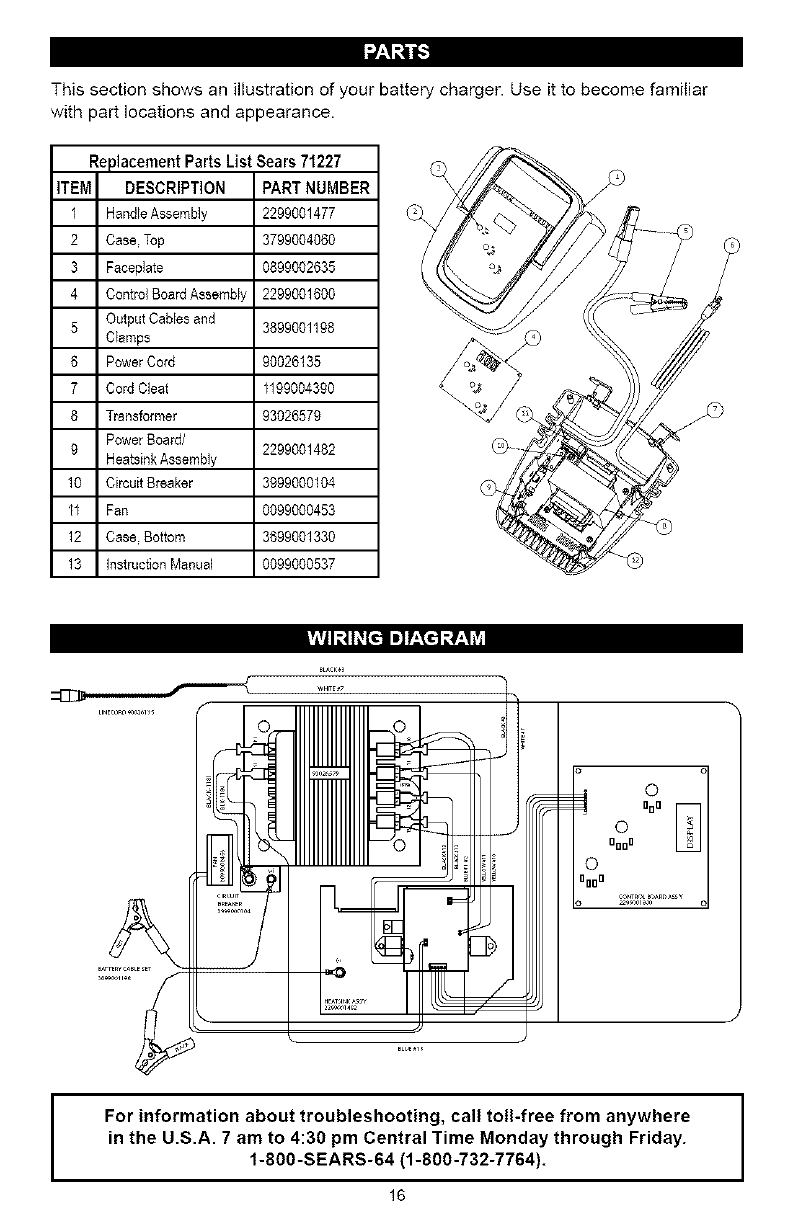

This section shows an illustration of your battery charger. Use it to become familiar
with part locations and appearance.
Replacement Parts List Sears 71227
ITEM DESCRIPTION PART NUMBER
1 HandleAssembly 2299001477
2 Case Top 3799004060
3 Faceplate 0899002635
4 ControlBoardAssernNy 2299001600
5 OutputCaNesaad 3899001198
Ctamps
6 PowerCord 90026135
7 Cord Cleat 1199004390
8 Transformer 93026579
PowerBoard/
9 2299001482
HeatsinkAssembly
10 Circuit Breaker 3999000104
11 Fan 0099000453
12 Case Bottom 3699001330
13 instructionManual 0099000537
G
kv,vtIr,iI#[_]1I] r.*_[_r,_r,.12j
I
For information about troubleshooting, call toll-free from anywhere
in the U.S.A. 7 am to 4:30 pm Central Time Monday through Friday.
1-800-SEARS-64 (1-800-732-7764).
