F-24 / Appendix F CI-ControlWave EFM
If a Zeros & Spans Button is pressed an Analog Input Configuration Web Pge Menu will
appear (see Figure F16A). Zero, Span and Units can be configured for analog inputs 1
through 3. The Analog Input Configuration Web Page also allows the user to enable/disable
the Damping function.

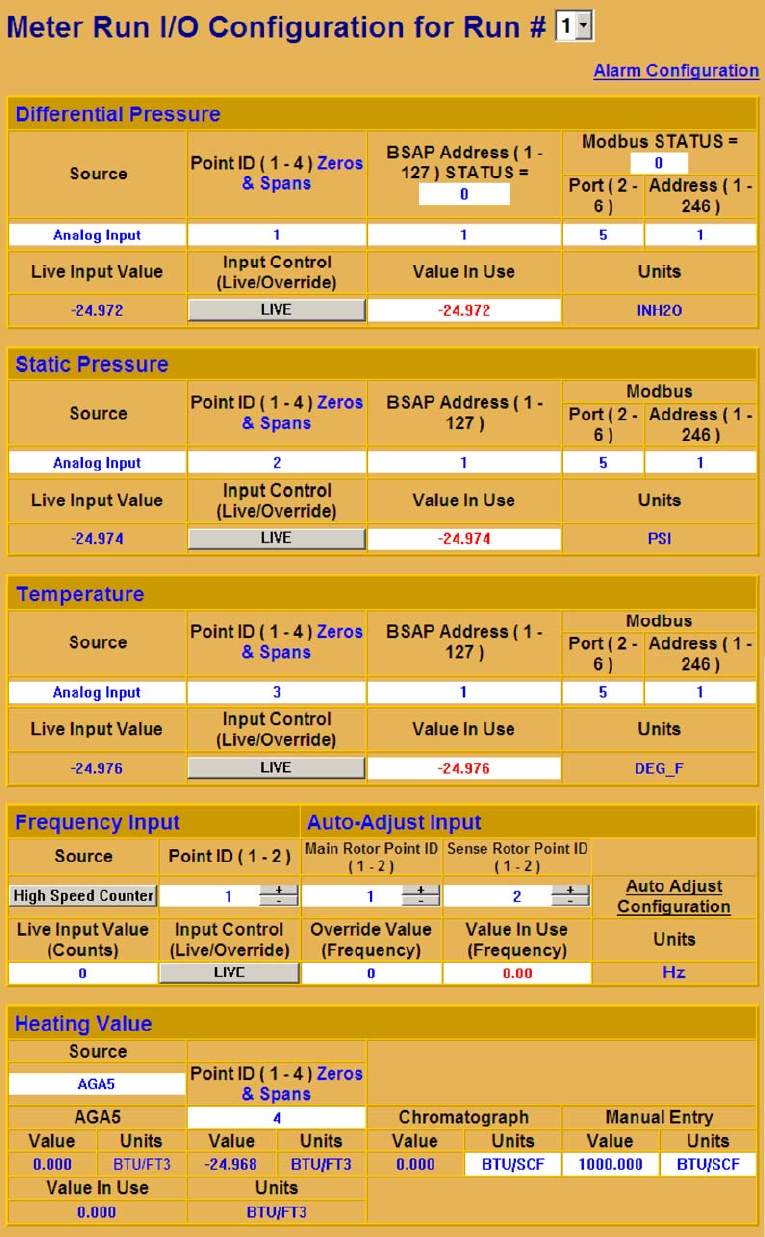

Figure F-15 - Meter Run I/O Configuration Web Page
