 Modular Drive

DellPrecision™ServiceManual

Removing the Modular Drive

Replacing the Modular Drive

The modular drive bay supports either a second hard drive, an optical drive, or an air bay for travel.

Removing the Modular Drive





1. Follow the procedures in Before Working on Your Computer.



2. Close the display and turn the computer over.



3. If a security screw is in place, remove it from the drive.



4. Push the drive lever in to release it.



5. Pull the drive out of the modular bay.

Replacing the Modular Drive





1. Slide the drive into the modular bay until it is properly seated.



2. Push the release latch in to secure the drive.



3. If a security screw was removed, replace the security screw.



4. Follow the procedure After Working on Your Computer.

Back to Contents Page



CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.

NOTE: The modular drive security screw is optional and may not be installed on your computer.

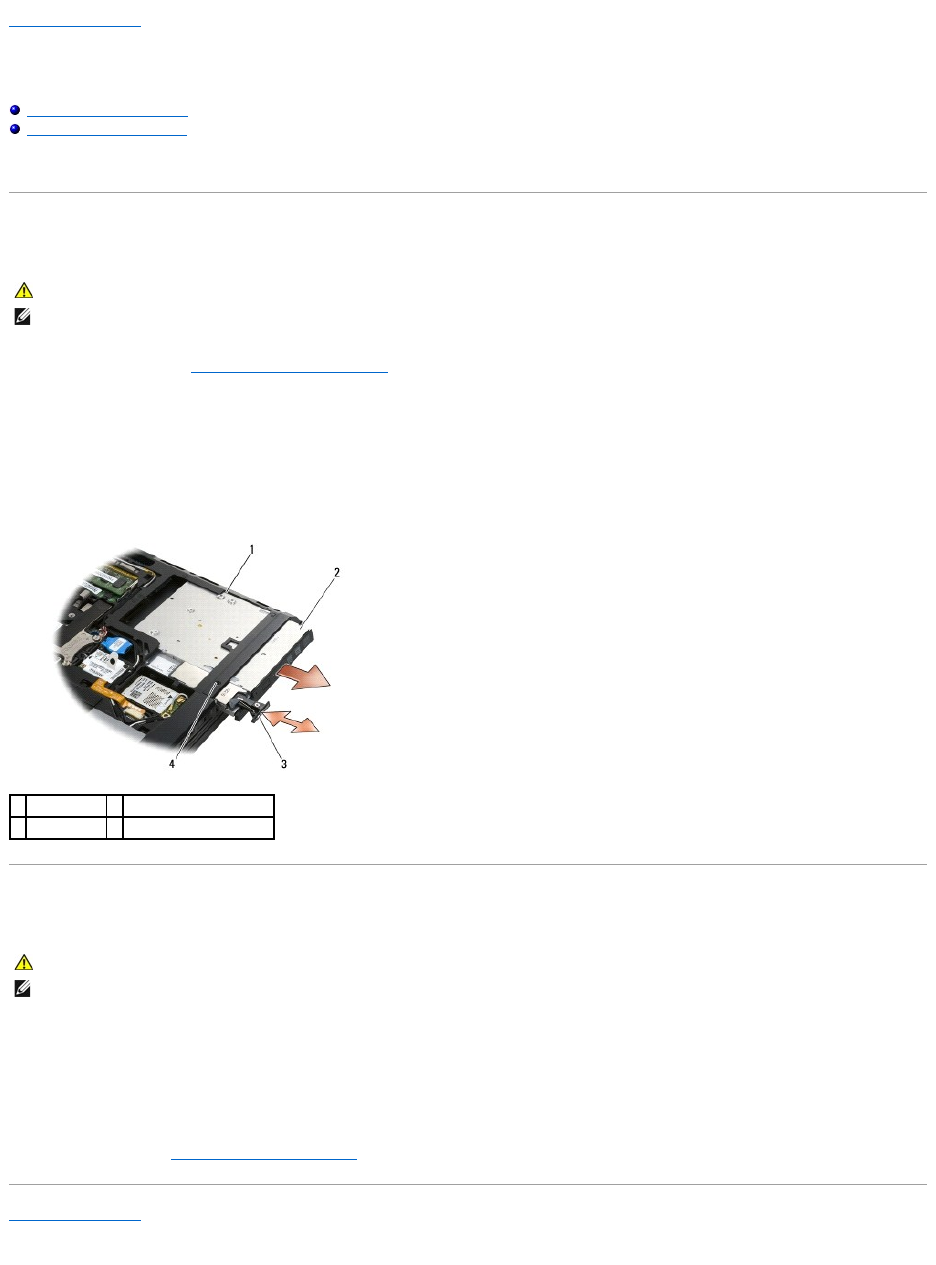

1

modular bay

2

modular drive

3

drive lever

4

security screw (optional)

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.

NOTE: The modular drive security screw is optional and may not be installed on your computer.
