o Use only 3-wire extension cords that have 3-prong grounding plugs and 3-
pole receptacles that accept the tool's plug.
o Repair or replace a damaged or worn cord immediately.
Repair or replace damaged or worn cord immediately.

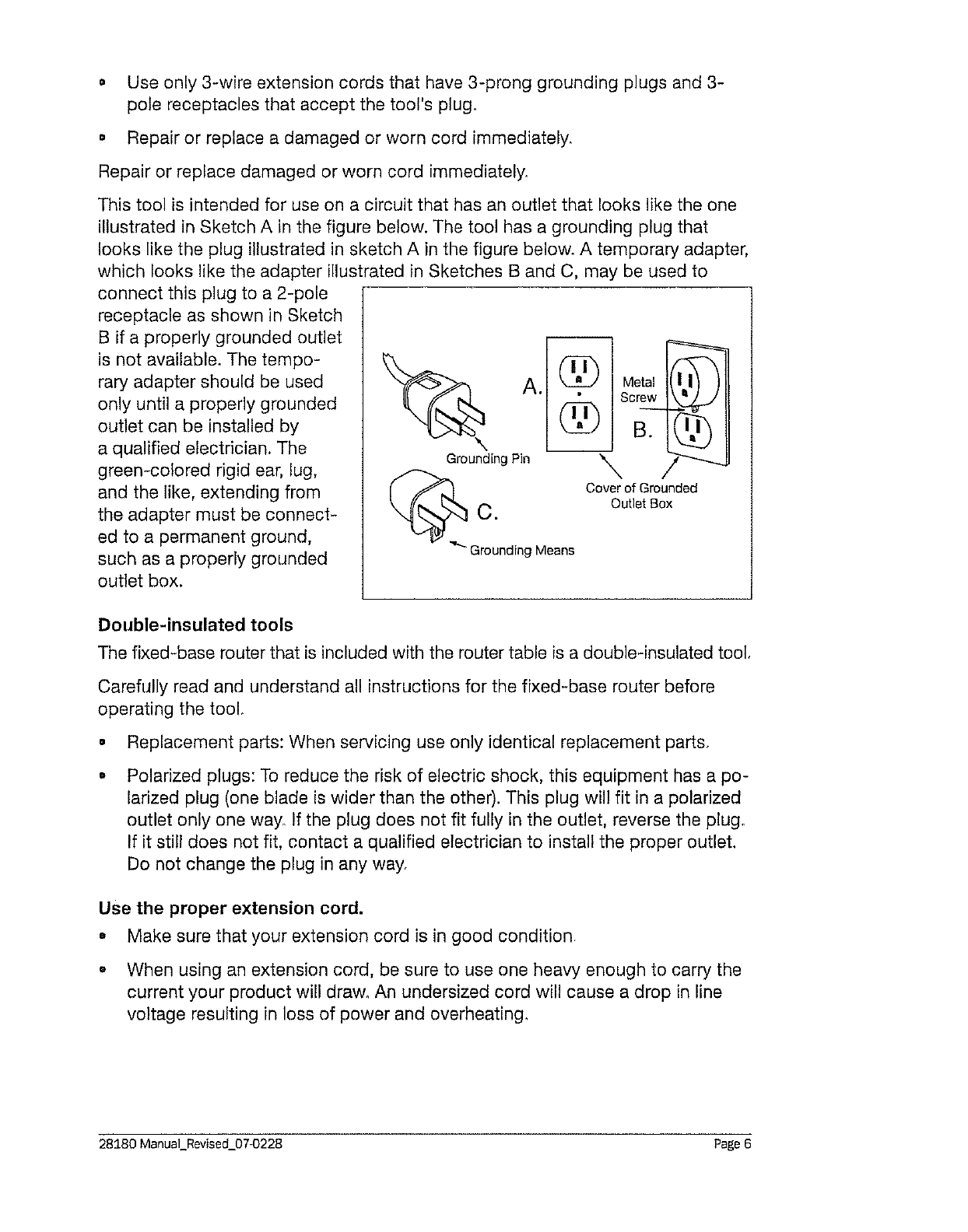

This tool is intended for use on a circuit that has an outlet that looks like the one
illustrated in Sketch A in the figure below. The tool has a grounding plug that
looks like the plug illustrated in sketch A in the figure below. A temporary adapter,
which looks like the adapter illustrated in Sketches B and C, may be used to
connect this plug to a 2-pole
receptacle as shown in Sketch
B if a properly grounded outlet
is not available. The tempo-
rary adapter should be used
only until a properly grounded
outlet can be installed by
a qualified electrician. The
green-colored rigid ear, lug,
and the like, extending from
the adapter must be connect-
ed to a permanent ground,
such as a properly grounded
outlet box.
flil_
\
Grounding Pin
(_ GrOolndiegMeans
Metal
Screw
",, /
Cover of Grounded
Outlet Box
Double-insulated tools
The fixed-base router that is included with the router table is a double-insulated tool,
Carefully read and understand all instructions for the fixed-base router before
operating the tool
• Replacement parts: When servicing use only identical replacement parts.
Polarized plugs: To reduce the risk of electric shock, this equipment has a po-
larized plug (one blade is wider than the other). This plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse the plug.
If it still does not fit, contact a qualified electrician to install the proper outlet,
Do not change the plug in any way,
Use the proper extension cord,
• Make sure that your extension cord is in good condition
• When using an extension cord, be sure to use one heavy enough to carry the
current your product will draw, An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating.
28180 Manual Revised_0743228 Page6
