Cisco 7200 VXR Installation and Configuration Guide
OL-5013-09
Chapter 1 Cisco 7200 VXR Product Overview
Field-Replaceable Units

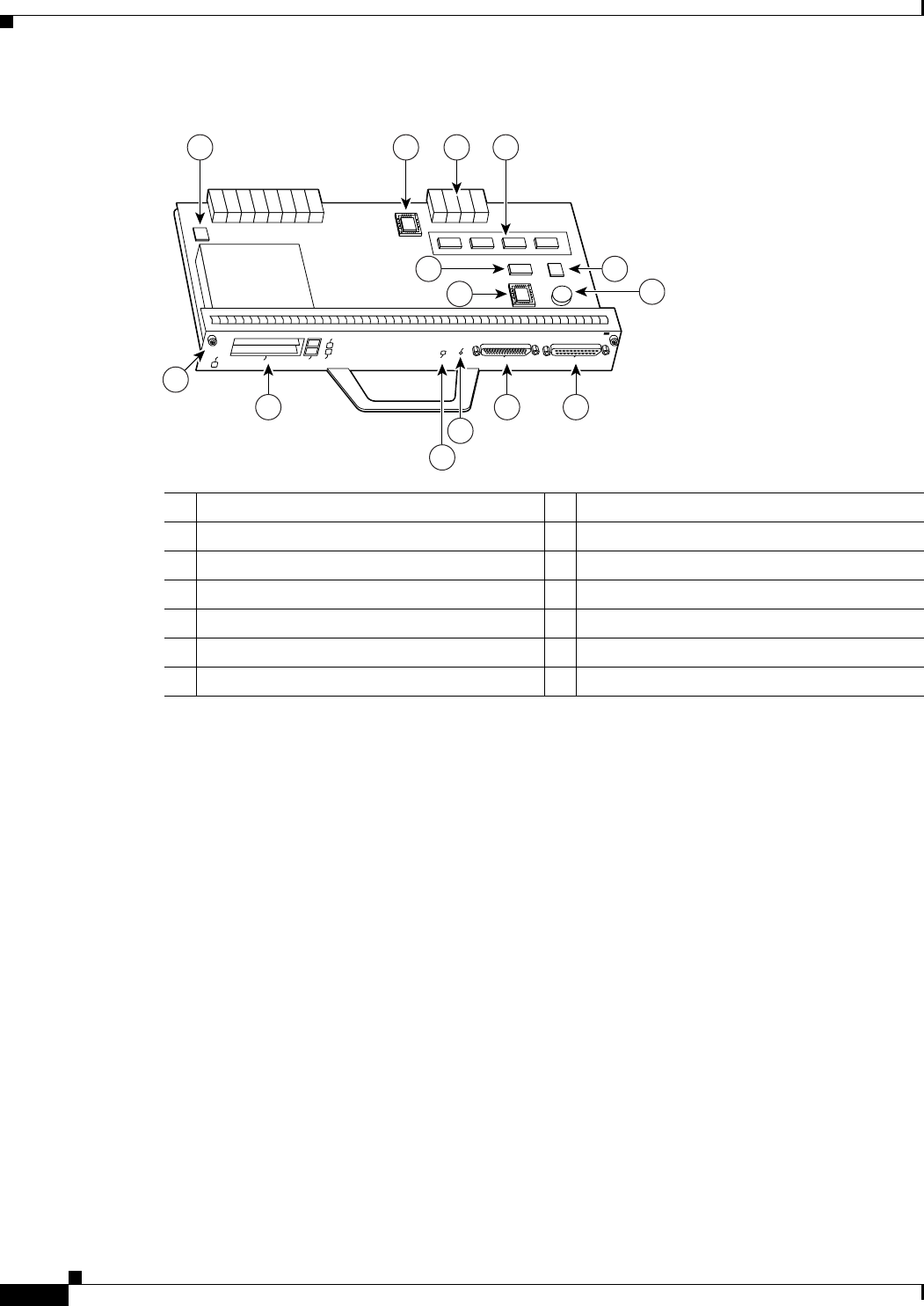

Figure 1-20 C7200-I/O—Without Fast Ethernet Port (Version 2)
1 Temperature sensor 8 Battery for SRAM
2 FPGA configuration PROM (U9) 9 Captive installation screw
3 Midplane connectors 10 PC Card slots
4 4-MB Flash memory (soldered) (U10–U13) 11 LED
5 SRAM (U14) 12 CPU reset button
6 Boot EPROM (U4) 13 Auxiliary port
7 Temperature sensor 14 Console port
