Fog
Lamp
You can reach the
fog
lamps from under the front
bumper.
1.
Remove the screw
in
the access door. Open the door.
2.
Turn the bulb base counterclockwise
118
turn and
pull it out.
3.
Disconnect the bulb base from the wiring harness.
4.
Reverse the steps with a new bulb.

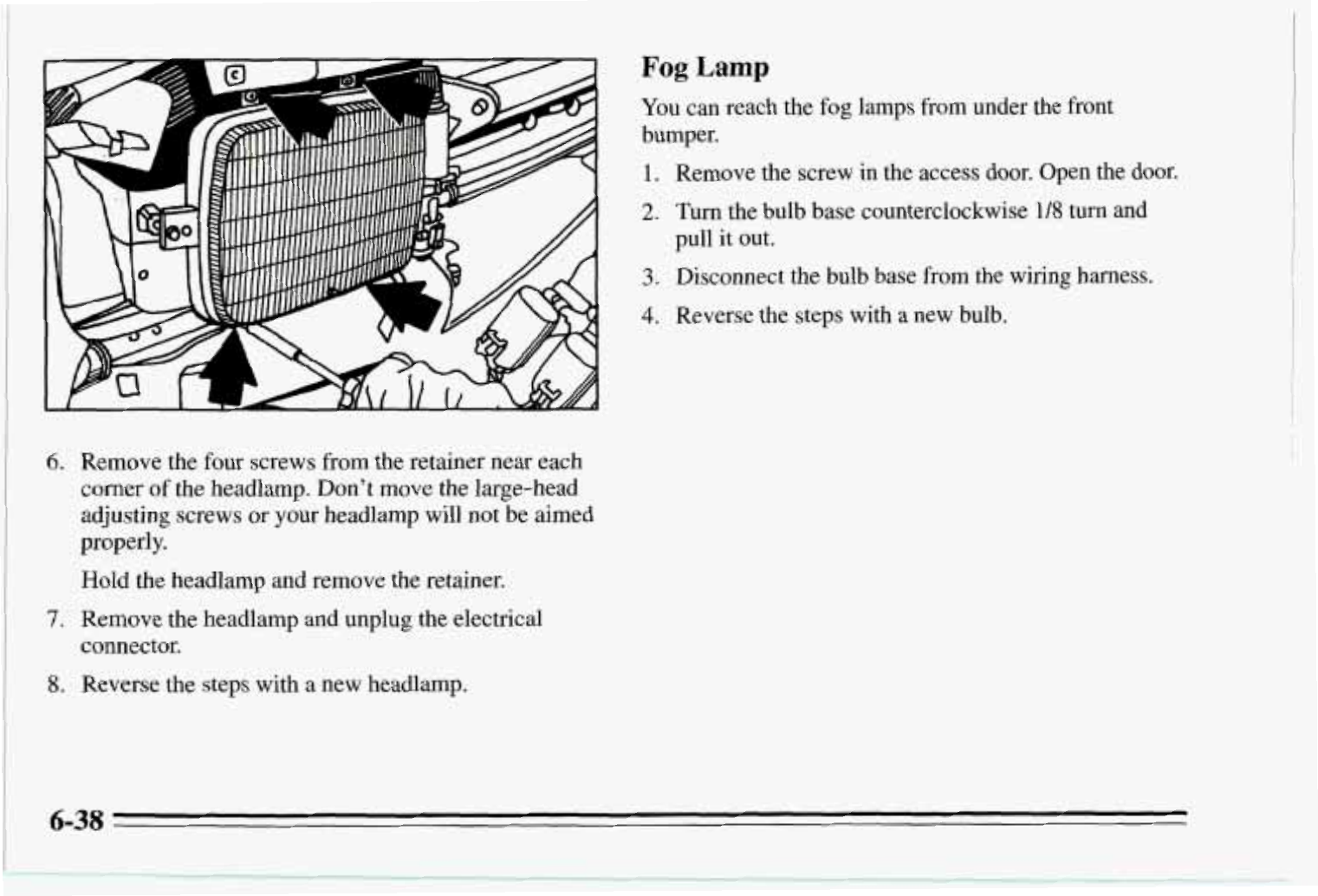

6.
Remove the four screws from the retainer near each
comer
of
the headlamp. Don’t move the large-head
adjusting screws
or
your headlamp will not be aimed
properly.
Hold
the headlamp and remove the retainer.
7.
Remove the headlamp and unplug the electrical
8.
Reverse the steps with a new headlamp.
connector.
