61150090L1-5A Section 61150090L1-5A, Issue 1 5
the bracket pattern. Refer to Figure 4 for pad mount
access dimensions.
1. At the installation site remove all packaging
material enclosing the cabinet.
2. Remove and set aside the mounting hardware
kit. Verify contents per Table 2.
3. The cabinet is bolted to two boards running
across the box frame. Remove the screws
securing the two boards to the wood box frame.
4. Attach lifting details. Screwed into each side of
the cabinet is a group of three bolts and washers.
Remove these for reuse.
5. Following the illustration in Figure 5, attach the
lifting details to each side of the cabinet using
the bolt and washer groups. Ensure the sealing
washers are placed between the cabinet and the
lifting details. Tighten bolts to 110-130 in-lbs.
WARNING
When lifting the cabinet out of the shipping
package and during installation, be sure to
exercise caution and observe all safety
measures.
6. Using appropriately sized and tested hoisting
gear, attach a hoist cable between the two lifting
details. Hoist the cabinet from the package and
lower the cabinet onto its side.
7. Remove all hardware securing the wood
shipping frame to the bottom of the cabinet.
CAUTION
Do not reuse shipping hardware. It is not
designed for cabinet mounting.
8. Following the illustration in Figure 6 and using
the parts supplied in the pad mounting kit, fasten
the two pad mounting brackets to both sides of
the bottom of the cabinet. Ensure the sealing
washers are placed between the cabinet and the
pad mounting brackets. Tighten to
100-110 in-lbs.
Table 2. Pad Mounting Hardware

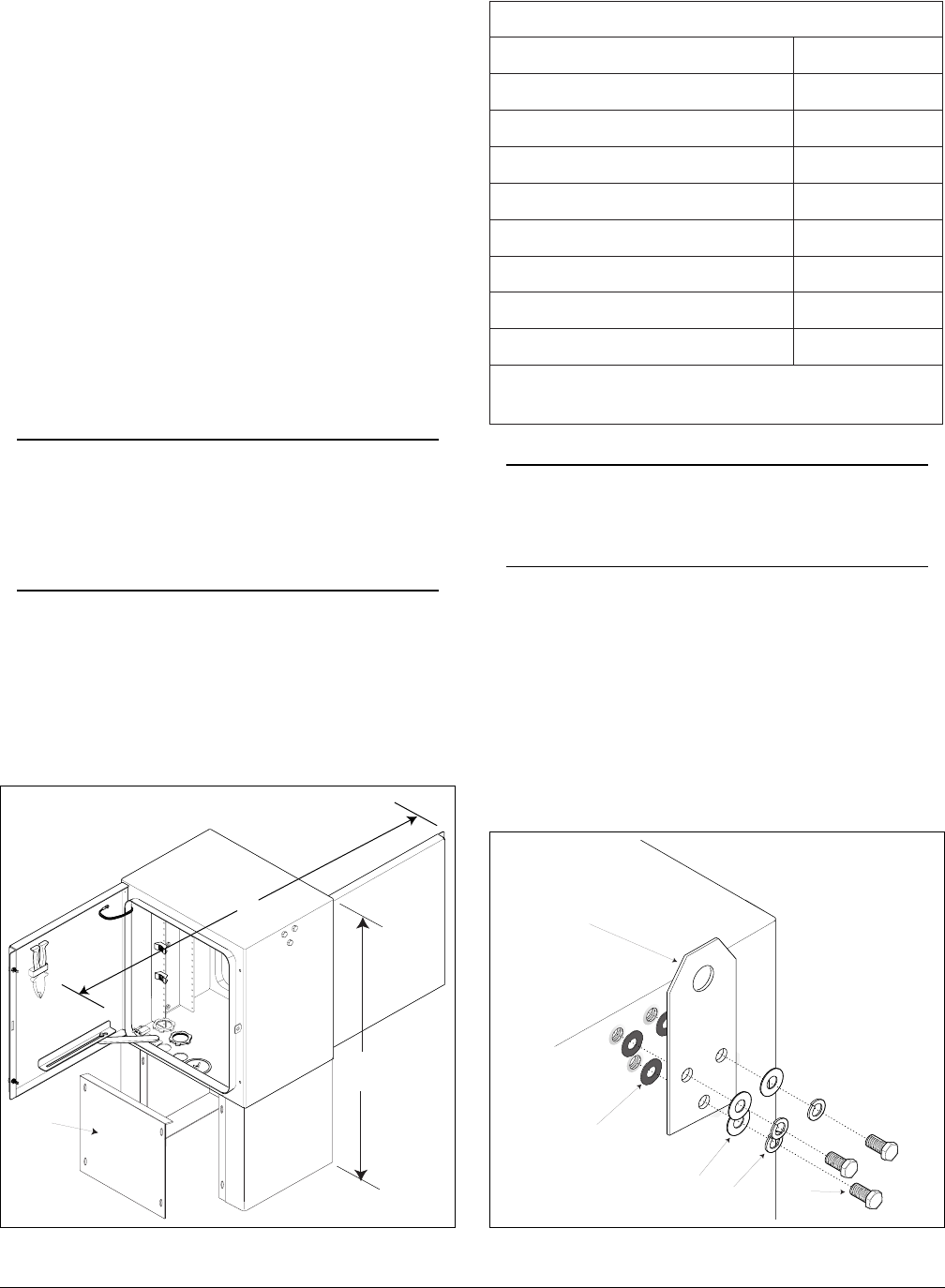

Figure 4. Pad Mount Dimensions
63"
overall with
doors open
45"
total
Security
Access
Cover
Figure 5. Lifting Detail Assembly
One side shown, other
side identical.
sealing washer
flat washer
split washer
bolt
lifting detail
Bolt torque:
110-130 in-lbs
tP.tiKerawdraHtnuoMdaP
#
8-0900512
noitpircseDytitnauQ
sliatedgnitfiL*2
tekcarbgnitnuomdaP2
revoctekcarbgnitnuomdaP2
stloB"1x61-8/34
rehsawtalF8/34
rehsawtilpS8/34
rehsawgnilaeS8/34
swercsytiruceS8
deppihserasliatedgnitfilhcattaotdesusrenetsaF*
.snoitacoltenibacdetangisedriehtotnidetresni-erp
