102 Chapter 3
Replacing the LCD Bezel

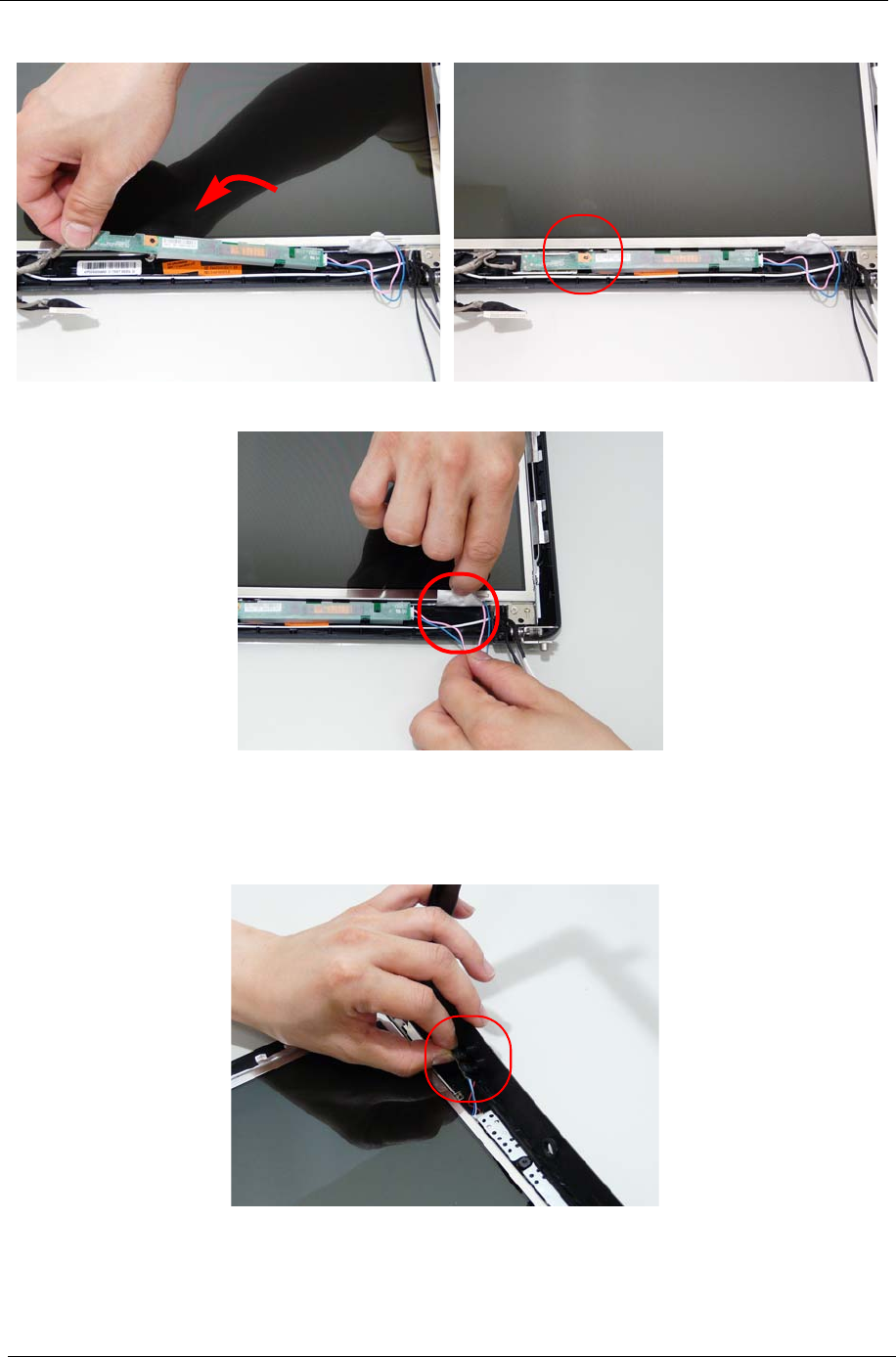

18. Insert the right side and lower Module in place. 19. Replace the single securing screw.
20. Replace the adhesive strip to secure the cabling in place.
NOTE: Ensure all cabling is tucked in under the adhesive strip to prevent damage.
1. Turn the bezel end up and insert the MIC into the underside of the Bezel as shown.
