330
Practical hints
Where will I find ...?

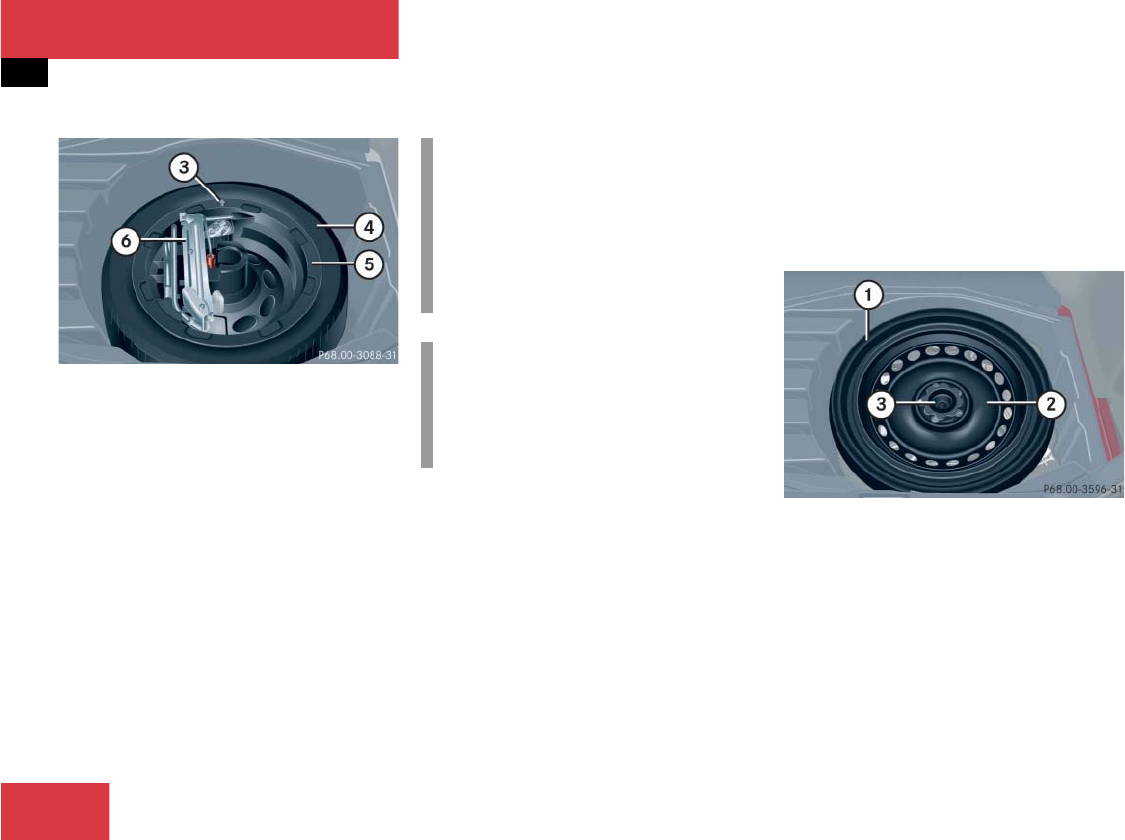

3 Arrow
4 Minispare wheel
5 Vehicle tool kit storage well casing
6 Vehicle tool kit
̈ Remove vehicle tool kit 6.
Storing the vehicle tool kit
̈ Place vehicle tool kit 6 in vehicle tool
kit storage well casing 5.
̈ Place storage well casing 2 over the
vehicle tool kit storage well casing 5
and turn retaining screw 1 clockwise
as far it will go to secure the Minispare
wheel.
Removing the vehicle tool kit
(C 55 AMG only)
̈ Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.
1 Collapsible tire
2 Vehicle tool kit (under collapsible tire)
3 Retaining screw
̈ Loosen retaining screw 3 by turning it
counterclockwise.
̈ Remove collapsible tire 1.
̈ Remove vehicle tool kit 2.
i
Arrow 3 on vehicle tool kit storage
well casing 5 must point in the direc-
tion of travel. Otherwise you cannot
place the storage well casing 2 on top
and secure the Minispare wheel with
retaining screw 1.
!
To prevent damage, always disengage
trunk floor handle from upper edge of
trunk and lower trunk floor before
closing the trunk lid.
