INSTRUMENT CLUSTER
Always check the Owner’s Manual for more operating information and safety features
WARNING LIGHTS
• Cruise control on
Amber light: Cruise control
system activated
Green light: Cruising speed set;
see Getting Started
• Tire Pressure
Monitoring System (TPMS),
see Getting Started
• High beams on
• Engine oil-pressure
warning light
Stop car when safe and turn
off engine; check oil level
• Brake system
Parking brake on/low brake fluid
• Always fasten seat belts
• Security indicator light*
• O Low fuel
• Door ajar

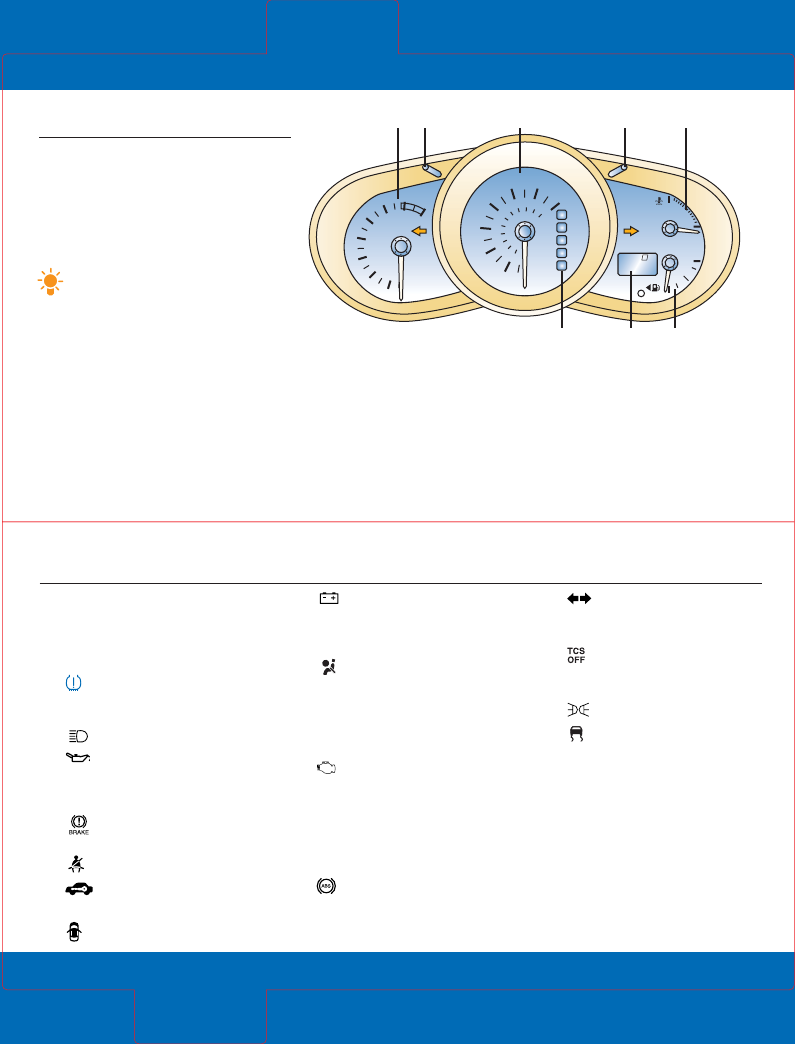

GAUGES
1. Tachometer
2. Speedometer
3. Instrument cluster dimmer
select button*
Pressing this button will toggle
between Navigation screen
DAY or NIGHT modes; rotating
knob will adjust brightness.
Tip: Instrument cluster
brightness can be adjusted
with headlight switch in
any position (black-out
meter mode).
4. Engine coolant
temperature gauge
Stop car if above normal
range, turn off engine, let
vehicle cool; check coolant
level when safe.
• Charging system
warning light
Charging system malfunction;
dealer inspection required
• Air bag/front seat belt
pretensioner system
If light flashes or stays on, the air
bags/front seat belt pretensioners
may not operate in an accident;
dealer inspection required
• Check engine
Dealer inspection required if light
remains on, see Owner’s Manual
• AT Automatic transaxle
warning light*
Automatic transaxle malfunction;
dealer inspection required
• Anti-lock Brake
System (ABS)
ABS malfunction, normal brakes
only; dealer inspection required
5. Fuel gauge
18.2-gallon/69-liter tank
6. Odometer/Trip meter
selector
Press to view odometer; press
again to reset trip odometer
A/B settings.
Instrument
Cluster
Instrument
Cluster
TRIP
A
773.7
6749
8
H
140
8
7
6
5
4
3
2
1
0
220
40
60
80
100
120
140
160
180
200
20
120100
80
60
40
20
0
C
F
x1000km/min
km/h
E
P
R
N
D
M
78 5
1 23 6 4
• Turn signals/hazard
warning on
• KEY*, see Getting Started
• TCS OFF
Traction Control System is
deactivated
• Lights ON indicator light*
• Traction Control
System (TCS)/Dynamic
Stability Control (DSC)
Light flashes when in use; dealer
inspection required if light
remains on
•
4WD
AWD warning light*
Flashing lamp indicates high
temperature differential oil,
illuminated lamp indicates an
abnormality with AWD system;
dealer inspection required
7. Odometer/Trip meter
8. Gear indicator
Displays current gear
position or manual mode.
CRUISE
*Denotes optional equipment
