17
If you use the supplied bracket, you may be interested in the optional
R-A-M
bracket mounting system. This converts the unit's gimbal
bracket to a swivel mount, which can be used on the dash or overhead
mounting positions.

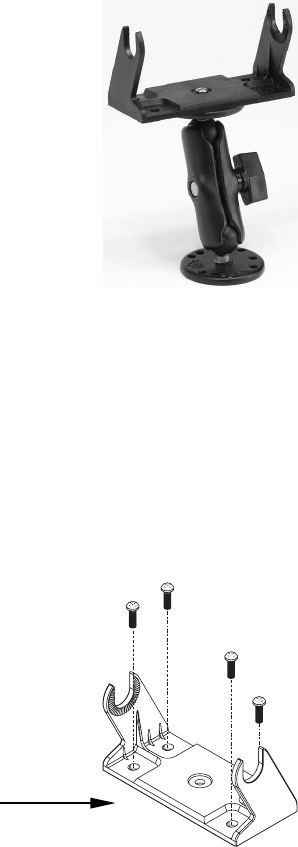

Optional R-A-M mounting system.
Bracket Installation
Mount the GlobalMap Baja in any convenient location, provided there is
clearance behind the unit when it's tilted for the best viewing angle. You
should also make sure there is enough room behind the GlobalMap Baja to
attach the power and GPS antenna/receiver module cables. (A drawing on
the next page shows the dimensions of a gimbal-mounted GlobalMap Baja.)
Holes in the bracket's base allow wood screw or through-bolt mounting.
You may need to place a piece of plywood on the back side of thin fiber-
glass panels to reinforce the panel and secure the mounting hardware.
Install the gimbal bracket. Orient the bracket so the arms slope toward
the front of your unit.
Front
