Checking
Satellite
Signal
Strength
The satellite signal strength screen shows
information about signals being received from
the GPS satellites. Information shown on the
screen includes:
the number of satellite signals
currently being received
the number of the satellite
transmitting each received signal
the strength of each received signal
whether or not the receiver is able
to calculate a 3D position
the azimuth and elevation angle of
each satellite from which a signal is
being received
Access the signal strength screen from any
navigation screen by pressing the UP or
DOWN ARROW keys.

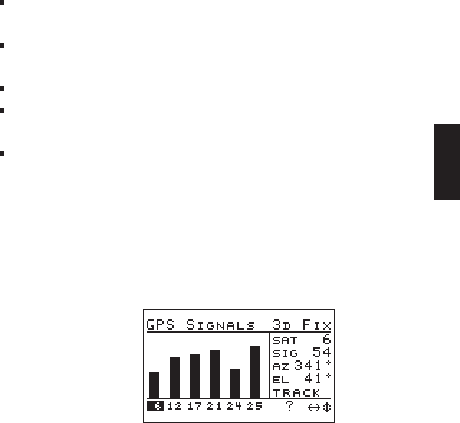

This example
shows information
about the signal
received from
satellite 6.
The screen shows that six satellite signals are
being received. Hence, a 3D position fix is
currently being calculated by the receiver.
