MS4209F, MS4309F, MS4709F, MS4809F, MS8209F, MS8309F FAST-ACTING, TWO-POSITION ACTUATORS
Automation and Control Solutions
Honeywell International Inc. Honeywell Limited-Honeywell Limitée
1985 Douglas Drive North 35 Dynamic Drive
Golden Valley, MN 55422 Toronto, Ontario M1V 4Z9
customer.honeywell.com
® U.S. Registered Trademark
© 2007 Honeywell International Inc.
63-1292—6 C.H. Rev. 04-07
Cycling Requirements:
! Prolonged holding-period (1 year) testing of these
actuators has been performed with no spring return
failures. The actuator and the internal spring are designed
to require no special cycling during long-term holding.
! Honeywell recommends following all local, state and
national codes for periodic testing of the entire smoke
control system. Refer to National Fire Protection
Association (NFPA) National Fire Codes
®
: NFPA90A,
NFPA92A and NFPA92B for your application.
! NFPA recommends periodic examination of each fire/
smoke damper (semi-annually or annually) to ensure
proper performance.
Mounting:
! 3/8 to 1/2 in. square or round damper shafts.
! The actuator can be mounted with shaft in any position.
! Secure hub to shaft with:
! MS4709, MS4809: Four 3 mm set screws.
Use 3 mm Allen wrench to tighten set screws.
! MS4209, MS4309, MS8209, MS8309: 1/4-28 UNF set
screws. Use 1/8 Allen wrench to tighten set screws.
Environmental Protection Ratings:
Approvals:
Accessories (not supplied with actuator):
! 201391 Shaft Adapter for 3/8 in. shafts.
! 205649 Mounting Bracket.
! 32003532-002 Dual Auxiliary Switch Package for
UL555(S) applications.

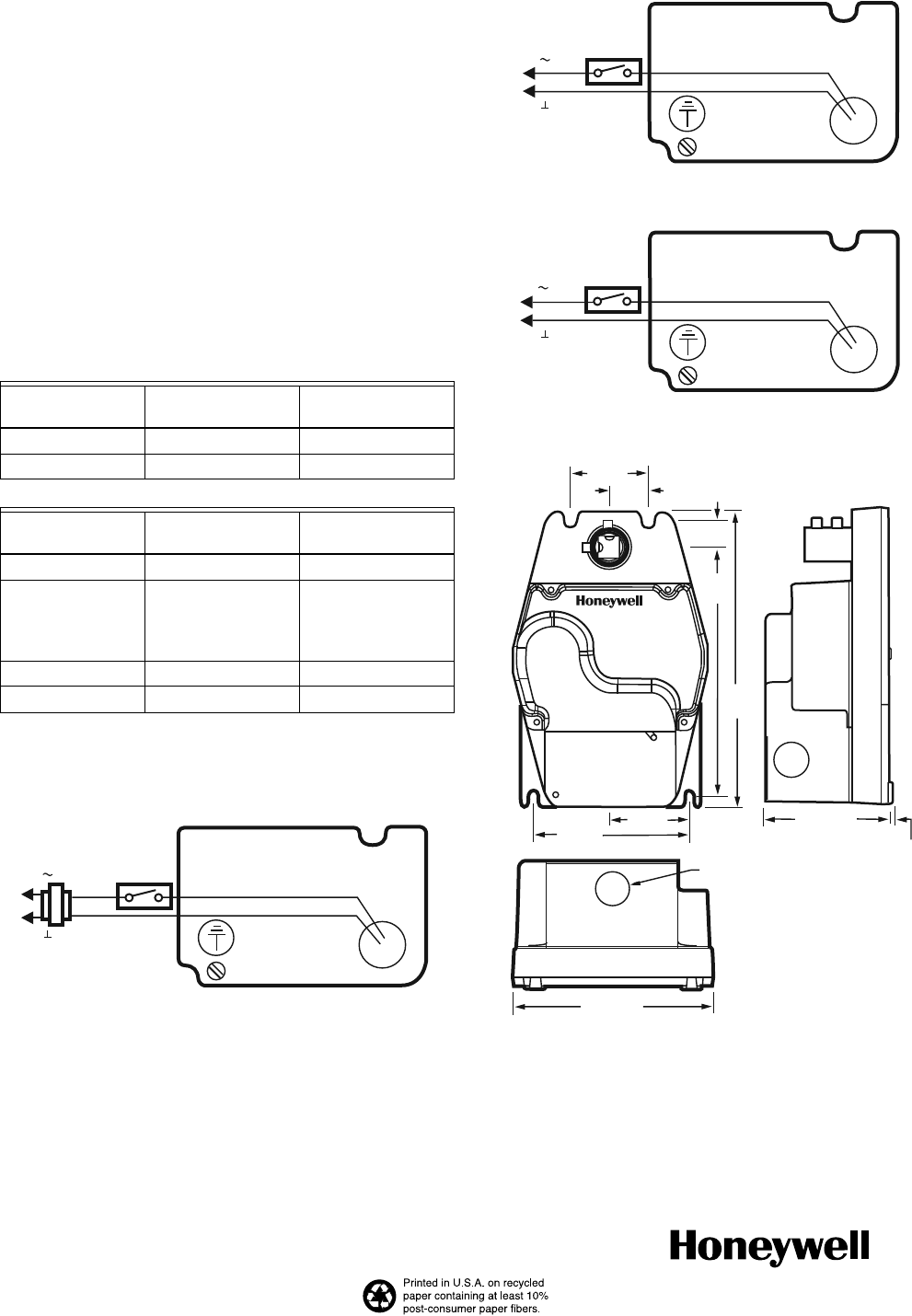

Fig. 1. Typical 24 Vac wiring.
Fig. 2. Typical 120 Vac wiring.
Fig. 3. Typical 230 Vac wiring.
Dimensions:
National Fire Codes
®
is a registered trademark of the National Fire Protection Association (NFPA).
MS4209, MS4309
MS4709, MS4809,
MS8209, MS8309
NEMA1 X X
IP54 X
MS4209, MS4309
MS4709, MS4809,
MS8209, MS8309
UL/cUL X X
UL873
Plenum Rating,
File No. E4436;
Guide No. XAPX
XX
CE X
C-TICK X
L1
24 VAC
L2
RED
BLACK
M17585A
( )
( )
L1
120 VAC
L2
WHITE
BLACK
M17589A
( )
( )
L1
230 VAC
L2
BLUE
BROWN
M17588A
( )
( )
2 (51)
1 (25)
5/8
(17)
6 3/8
(161)
7 1/2
(192)
4 (102)
7/8 (22)
5 1/8 (129)
2 (51) 3 5/16 (84)
1/16 (2)
M17508
