Ford 2006 E-150 Automobile User Manual



Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box
Description
H Blower motor relay
J Accessory delay relay
K Start relay
* Mini fuses ** Maxi fuses
Relay modules

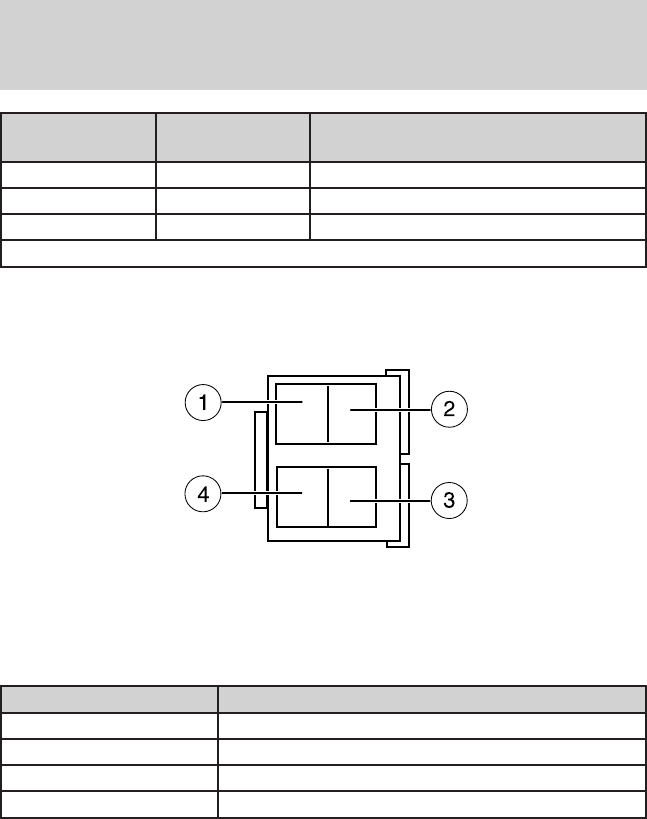

Instrument panel relay module
The instrument panel relay module is located behind the radio in the
center of the instrument panel. Have a certified technician or your dealer
service this module, if required.
The relays are coded as follows:
Relay location Description
1 Interior lamps
2 Open
3 Open
4 Battery saver
2006 Econoline (eco)
Owners Guide (post-2002-fmt)
USA (fus)
