MONITOR MODES
16
2.3 SURROUND MODE
As its name implies, Surround mode is typically
used for Surround Sound Mixing sessions.
Surround mode enables the [L], [C], [R], [Ls],
[SUB/LFE] & [Rs] Surround Control buttons on
the Monitor Station Remote and puts the
FireStudio in Surround mode.
General purpose outputs 1-6 and Main L/R are
reserved for Surround Control and are disabled

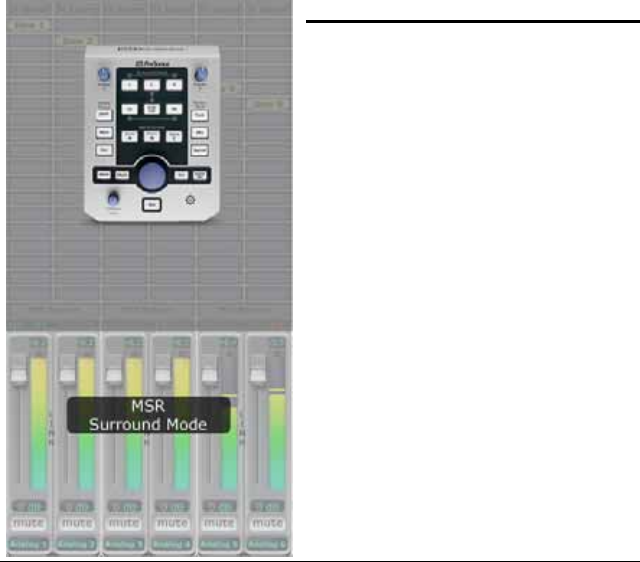

in the FireStudio Control Console
as shown in
the screenshot image at left
– output streams
Daw 1 through Daw 6 route directly to general
purpose outputs 1-6 & Main L/R.
The Main Level control knob on the Monitor
Station Remote controls the volume level of all
active Surround outputs equally when the
FireStudio is in Surround mode.
Outputs 7/8, ADAT, S/PDIF & Phones 1-3
function as in Track mode.
