39
Instruments and controls

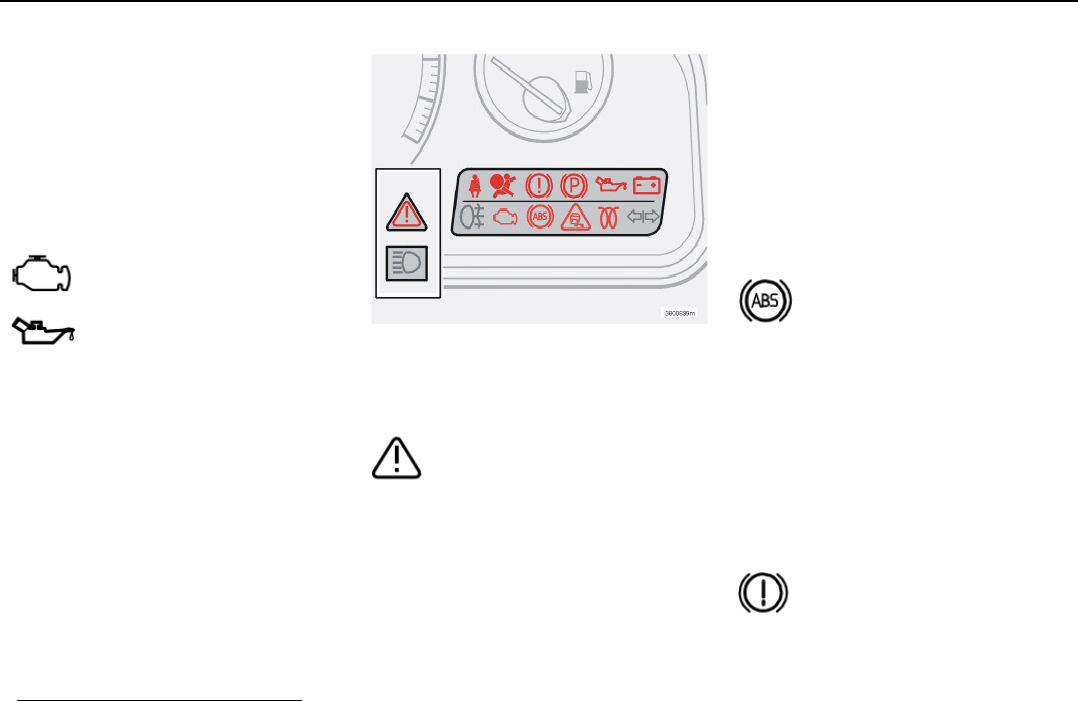

Indicator and warning symbols
Indicator and warning symbols
All indicator and warning symbols
1
light up
when the ignition key is turned to position II
before starting. This is to check that the sym-
bols/lights are working. When the engine
starts, all the symbols should go out except
the handbrake symbol, which extinguishes
when the handbrake is released.
If the engine does not start
within five seconds, all symbols
extinguish except the symbols
for a fault in the car’s emissions
system and for low oil pressure.
Certain symbols may have no
function, depending on the car’s specifica-
tions.
Warning symbols in the centre of
the instrument panel
These symbols are lit with a red or
amber glow depending on the
severity of the fault.
Red symbol:
– Stop the car! Read the message in the
display.
Symbol and message text are visible until the
fault has been rectified.
Yellow symbol:
– Read the message in the display.
Remedy!
The message text is cleared using the READ
button, see page 42, or disappears automati-
cally after 2 minutes.
When the message text "TIME FOR REGU-
LAR SERVICE" is shown, the symbol lamp
and message text are cleared using the
READ button, ordisappear automatically after
2 minutes.
ABS fault
If the ABS symbol lights, the ABS
system is not functioning. The car’s
normal braking system continues to
work, but without the ABS function.
– Stop the car in a safe place and switch off
the engine. Restart the engine.
• If the warning symbol goes out, continue
driving. It was an indicator error.
• If the warning symbol remains lit, drive to
an authorised Volvo workshop to have the
ABS system checked.
Fault in brake system
If the BRAKE symbol lights, the
brake fluid level may be too low.
Stop the car in a safe place and
check the brake fluid reservoir level.
1. With certain engine variants the
symbol for low oil pressure is not lit.
