19
The eXplorist has three navigation screens as well as a Satellite Status screen that can be accessed by
pressing the NAV button. Each screen provides the same information in a different format giving you the
choice of choosing the screen that best suits your needs.
Tip: The ESC button will also set through the navigation screens, just like the NAV button but in the reverse
order.
The first, and most commonly used screen is the Map screen. The Map screen displays your position, as well
as POI’s and any background map data for the area displayed.
Highlights of the Map screen:
• Use the zoom in/out buttons to change the scale.
• The arrow cursor in the middle of the display indicates your position, and if moving, points in the
direction you are heading.
• Press MARK to save your position.
•Use the Arrow joystick to move the cursor. The arrow cursor changes to a crosshair cursor with any
available information about the position of the cursor at the bottom of the display. You can also save
the position of the crosshair cursor as a POI by pressing the MARK button.
• Press ESC when you are done panning with the crosshair cursor to display your present position with
the arrow cursor.
• Press MENU and select Hide Map Info or Show Map Info to turn the information boxes at the
bottom of the screen on or off.

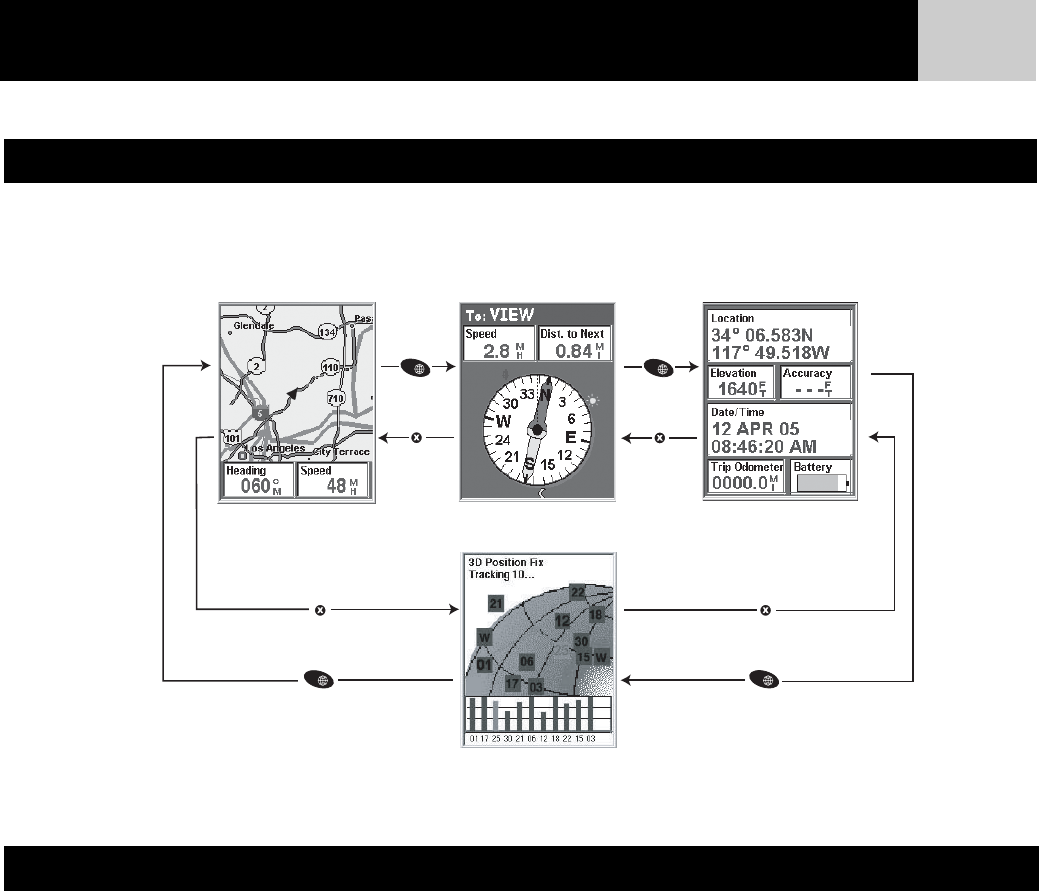

Accessing the Navigation Screens
Map Screen
NAV
ESC
NAV
ESC
NAV
ESC
NAV
ESC
Navigation Screens
