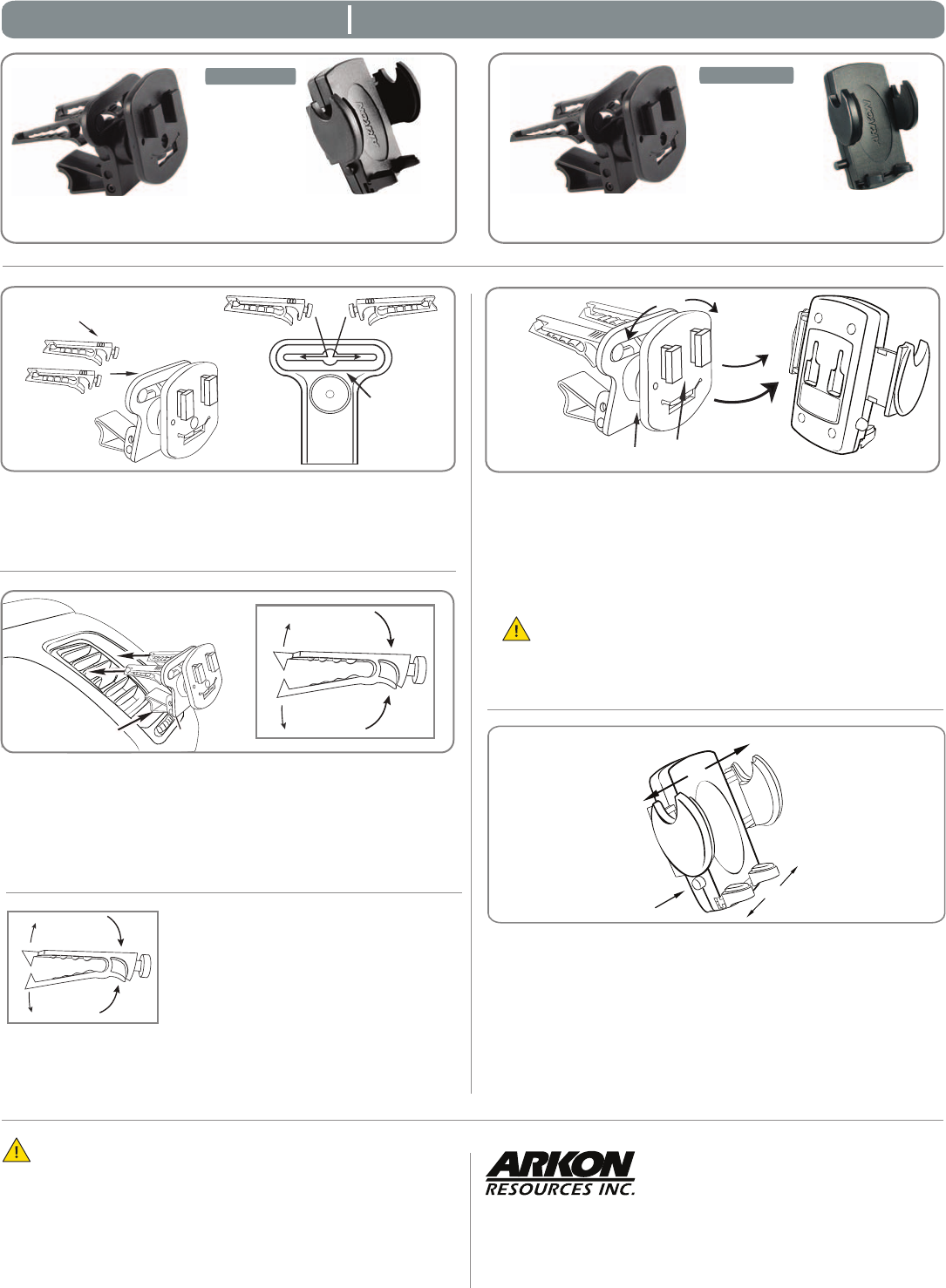

SM229-SRVC & CM929-SRVC Swivel Vent Universal Mobile Phone or PDA Mount
Consumer Hotline:
(USA) (800) 841-0884
(INT'L) (626) 254-9005
Mon-Fri. 9am-5pm, PST
www.arkon.com
Arcadia, CA 91006 USA
Made in Taiwan
© Copyright 2007 Arkon Resources, Inc.
The Mobile Mounting Specialists
TM
CM047-S (Single T-tab)
CM047-S2 (Dual T-tab)
CM047-S (Single T-tab)
CM047-S2 (Dual T-tab)
CM090
CM090-2
SM020
SM020-2
CM929-SRVC
Flat side face up
Step 1.
Step 2.
Adjust the swivel angle of the pedestal head by firmly holding
the back of the pedestal (B), pulling out the pedestal head and
twisting to the desired angle. Adjust the lateral angle of the
pedestal head (E) by simply twisting the head on the pivot axis
(D).
Use caution when adjusting the swivel movement to avoid
damaging your air vents.
Attach the device cradle to the pedestal by inserting the dual T-
Tabs of the pedestal (E) into the T-slots of the cradle (F).
Step 3.
Carefully slide the pedestal from the vent/blade. Make sure the
teeth of the vent clips are open enough so as not to damage the
vent.
Pedestal Adjustment & Device Cradle Installation
Step 1.
Step 2.
Remove the device from the vent
mount assembly.
Pinch the vent clips (A) so that the
teeth open.
Pedestal Removal
Step 1.
Attach the vent mounting clips (A) to the back of the pedestal (B)
with the vent clips positioned with the flat sides facing up.
Pedestal Assembly
Step 1.
Pinch the vent mounting clips (A) so that the teeth open and
gently insert vent pedestal into vent louvres until the mounting
clips are attached to the fin/blade of the vent. Adjust the support
leg (C) vertically until it rests firmly along the bottom of the vent
or dash surface below the vent.
Insertion of Pedestal into the Air Vent
(A)
(C)
SM229-SRVC
(F)
(E)
(D)
(B)
(A)
(A)
(B)
(J)
(K)
(I)
Step 1.
Step 2.
Step 3.
Universal Cradle Instructions
If necessary, adjust the support legs (K) by sliding them
laterally. These provide support for your device.
Place device on the support legs (K) and squeeze the side
grip arms (I) until they fit securely to the device.
Push the release button (J) in order to release the device from
the cradle.
Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/or
air bag deployment.
Arkon Resources, Inc. is not responsible for any damages caused to
your air vent louvres, car, device or yourself as a result of the instal-
lation or use of this mount.
