RADAR GUN INTERFACE for RG-2RS
INSTALLATION GUIDE
The AVE Radar Gun Interface consists of two main components, the VSI-Plus text
inserter and the RG-2RS radar gun interface. This radar gun interface will work
with the following radar guns: Decatur Hunter, Genesis l & ll, Stalker, & Kustom
The 8 position dipswitch on the RG-2RS is used to select the radar gun and the
baud rate if necessary.
Radar Gun
SW1 SW2 SW3 SW4 SW5 & SW6
off off off off Are unused Genesis
on off off off (off) Hunter
off on off off Stalker
off on off off Stalker ATR
off off on off Stalker Dual SL
on on off off Kustom
Baud Rate
SW7 SW8
off off 1200
on off 2400
off on 4800
on on 9600

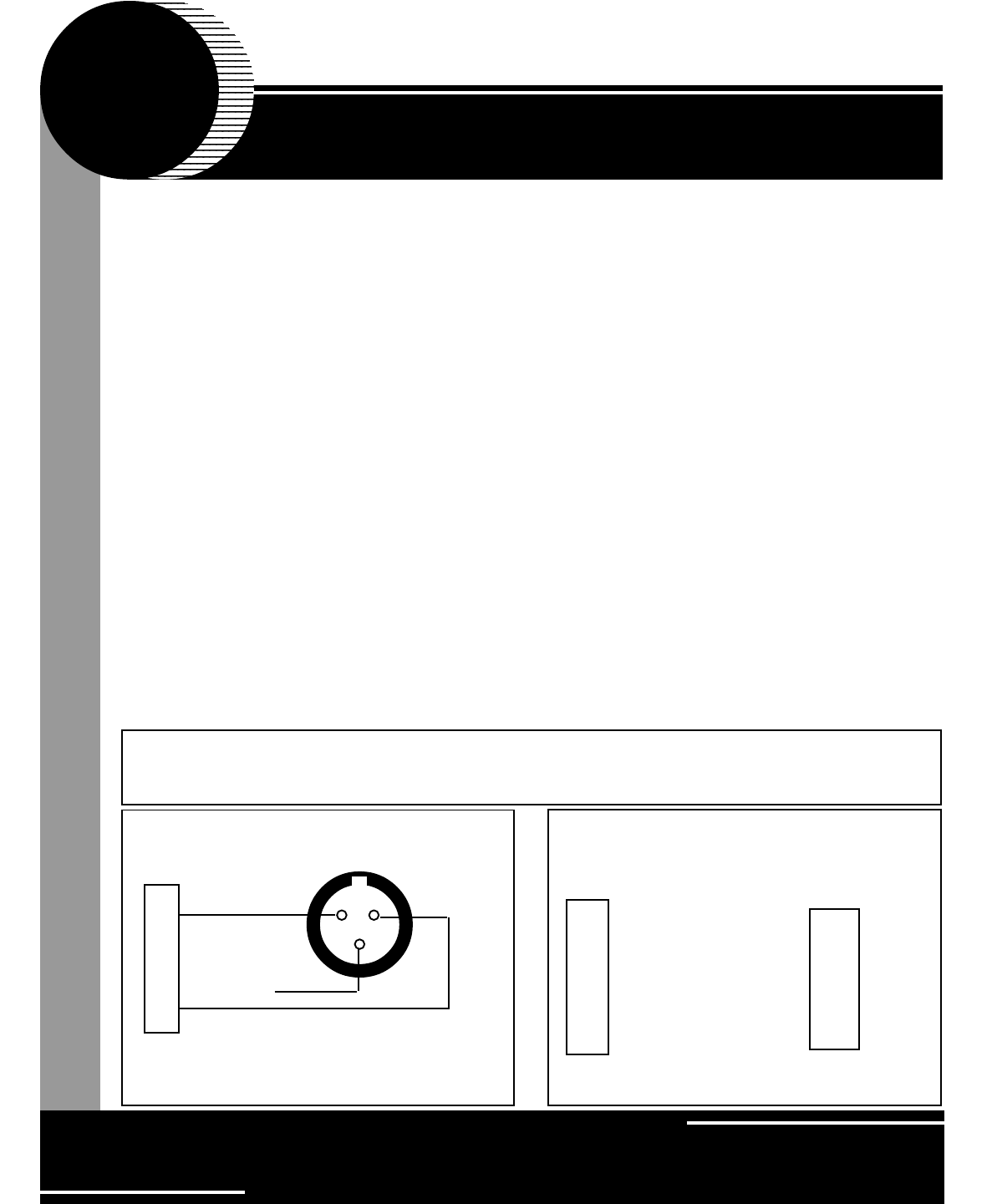

Cable Between the RG-2RS and the VSI:
RG-2RS DB-9 VSI DB-9
3-------------------------2
1-------------------------5
13
7
RXD
GND
WHITE
BLACK
(GND)
RED (+V)
On the 8 position dipswitch, select Stalker
and 9600 for the baudrate.
Interfacing with KUSTOM:
Make the following connection:
RG-2RS
DB-25
RG-2RS
DB-25
KUSTOM
15 PIN MALE
On the 8 position dipswitch, select KUSTOM
and 9600 for the baudrate.
19-----------------------------------------------------10
13-----------------------------------------------------3
7-------------------------------------------------------8
Interfacing with Decatur Hunter and Genesis l & ll:
Connect TXD on the radar gun to Pin 3 (RXD) on the DB-25 of the RG-2RS and Ground to Pin 7.
Use the 8 position dipswitch to select Hunter or Genesis and the proper baudrate.
Interfacing with Stalker:
Make the following connection:
